The Simagic Alpha EVO Ultra is the most powerful direct drive base in the Alpha EVO range. With 28 Nm, a very low inertia servo motor, a 21-bit encoder and active cooling, it delivers force feedback with exceptional precision and a large torque reserve for the most demanding drivers. At 28 Nm you go beyond the effort felt at the wheel of a GT3 car without power steering, so a genuinely rigid chassis is part of the equation.

Don't miss the deal

000
00 Days
00
00 Hours
00
00 Mins
00
00 Secs
In stock
Free shipping over $200
Support technique 24/7
Established brand
28 Nm
encodeur
21-bit encoder
charge
11 kg
110 mm
PC Compatible
Aluminum
CNC Machined
refroidissement
Active Cooling
sans_fil
Wireless
connexion
Universal Compatibility
garantie
Manufacturer Warranty

In detail

Simagic Alpha EVO Ultra: 28 Nm of power and exceptional precision in Sim Racing

Direct-Drive Base | Alpha EVO Ultra 28 Nm | SIMAGIC 01 / 04

28 Nm for an exceptional power reserve

At 28 Nm, the Alpha EVO Ultra sits at the top of the Alpha EVO range. That power is not only about producing stronger force feedback: above all it gives you a large reserve, so more of the detail survives when the torque the simulation asks for climbs.

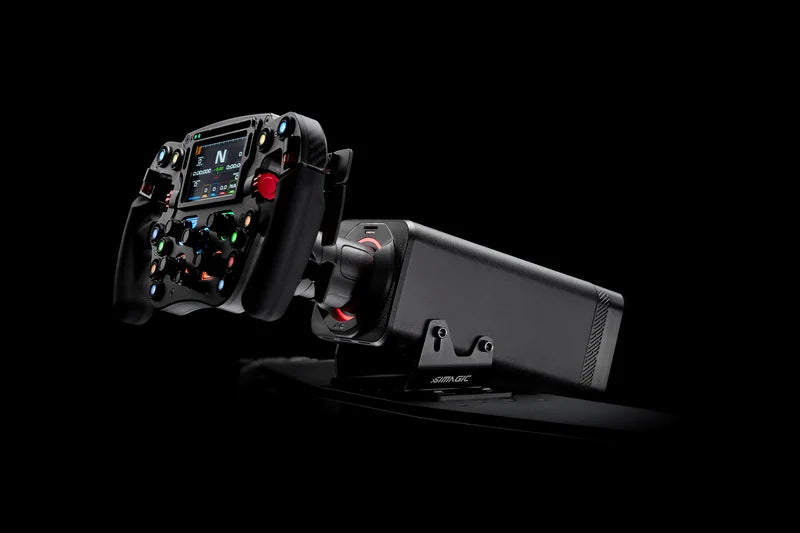

SIMAGIC Alpha EVO Ultra 28 Nm — base direct drive, vue 2 02 / 04

A very low inertia motor

The very low inertia direct drive motor lets the wheel react quickly to direction changes and to shifts in the force feedback. Paired with Zero-Cogging technology, it aims for a smooth, natural rotation with no perceptible mechanical notching.

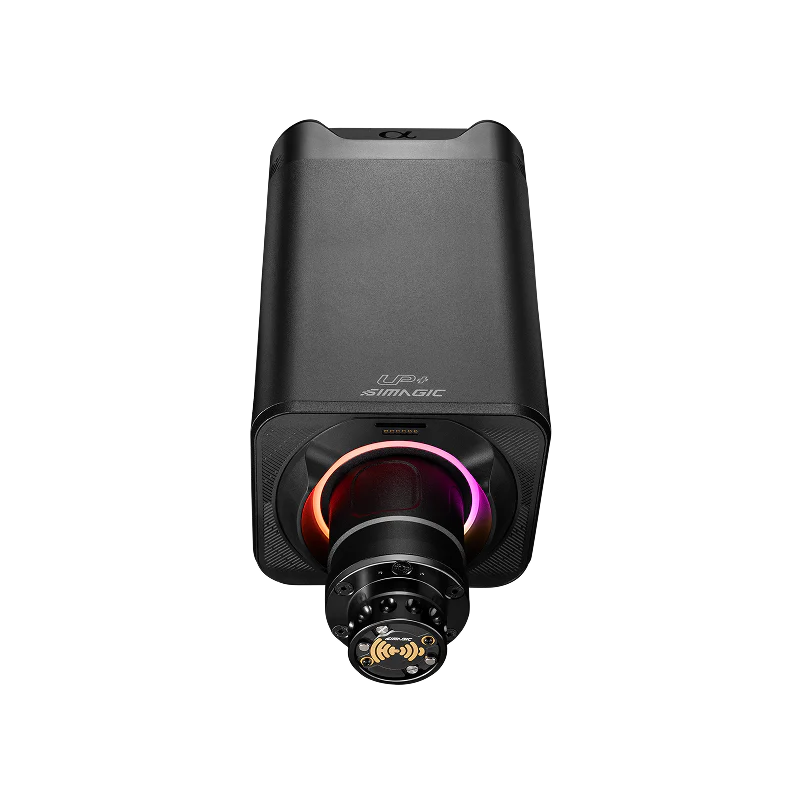

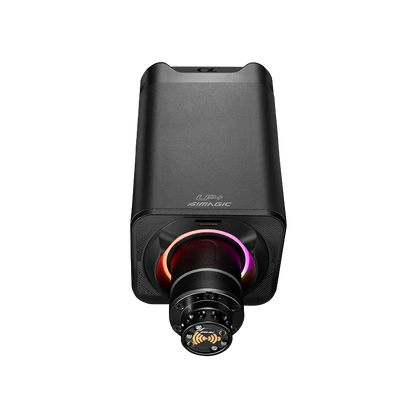

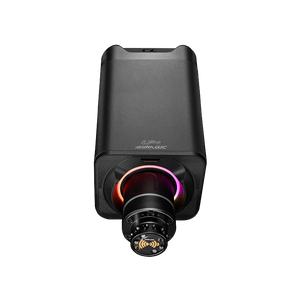

SIMAGIC Alpha EVO Ultra 28 Nm — détail du base direct drive 03 / 04

Force feedback rich in detail

The 21-bit encoder and the DFDF algorithm work together to render what the simulation sends with real subtlety. Loss of grip, kerbs, load changes and the car's reactions all come through with more precision.

A base built to grow with your cockpit

The Alpha EVO Ultra has 11 ports and supports the CAN, CAN FD and USB protocols. It slots naturally into the Simagic ecosystem while keeping an open approach that allows certain configurations with third-party devices. Wireless power and compatibility with QR50, QR70 and QR-A also make it easier to run several different wheels.

Features

  • 28 Nm of torque: the most powerful base in the Alpha EVO range
  • Very low inertia servo motor with 5 pole pairs and Zero-Cogging technology
  • 21-bit encoder, 180 MHz processing and a 20 kHz response rate
  • DFDF filter: the torque reserve absorbs peaks without drowning the detail
  • Active Hyper Cool cooling: constant torque from the first lap to the last
  • 11 CAN, CAN FD and USB ports, plus wireless power to the wheel
  • Works with QR50, QR70 and QR-A, RGB ring and emergency stop included

Technical Specs

General
Brand SIMAGIC
Model Alpha EVO Ultra 28 Nm
Type Direct drive base
Dimensions 359 x 130 x 110 mm
Weight 11 kg
Material Die-cast aluminium with CNC machining
Motor and force feedback
Maximum torque 28 Nm
Motor type Very low inertia direct drive servo motor
Motor design Industrial servo with 5 pole pairs
Encoder resolution 21-bit
Processing frequency 180 MHz
Response rate 20 kHz
Dynamic filter DFDF (Dynamic Force Domain Filter)
Motor technology Zero-Cogging
Cooling Active (Hyper Cool)
Power
Maximum power 550 W
Power supply 48 V
Connectivity
Ports CAN, CAN FD and USB
Number of ports 11
Wireless power Supported
Lighting Customisable RGB ring
Mounting
Quick release QR50, QR70 and QR-A
Compatibility
Platform PC
Software SimPro Manager
Ecosystem Simagic wheels, pedals, shifters and handbrakes
Dashboard UP+ ecosystem
Third-party devices Compatible through the appropriate adapters
Safety
Safety Emergency stop switch included

FAQ

A few questions we're often asked about this product.

Our team of experts is here to answer any question you have.

Drivers who want torque headroom, not just force. At 28 Nm you go beyond the effort at the wheel of a GT3 without power steering. Two conditions apply: a genuinely rigid chassis, or the frame absorbs part of what the motor produces, and the conditioning to last a long race.

No, and that's the point of headroom. Setting the base to 60 or 70% of its 28 Nm still reproduces force peaks without clipping, where a less powerful base saturates. You gain detail fidelity rather than brute effort at the wheel.

28 Nm from an industrial 5-pole-pair, ultra-low-inertia servo motor, a 21-bit encoder, 180 MHz processor, 20 kHz response rate, the DFDF algorithm and Zero-Cogging technology. Hyper Cool active cooling, 550 W at 48 V, 11 ports and support for CAN, CAN FD and USB.
