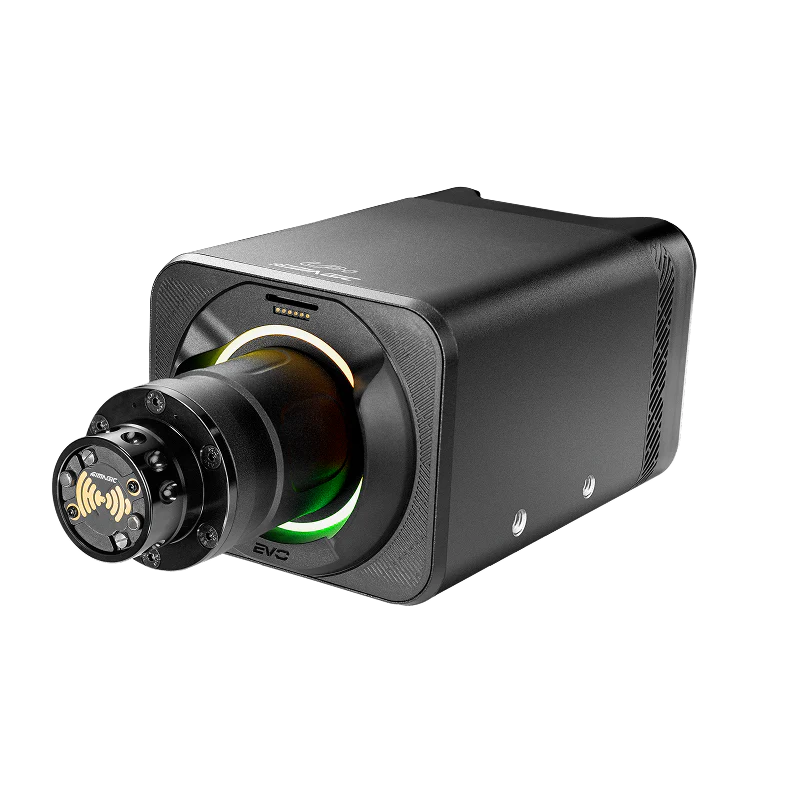

SIMAGIC EVO 12 Nm — base direct‑drive, vue 2

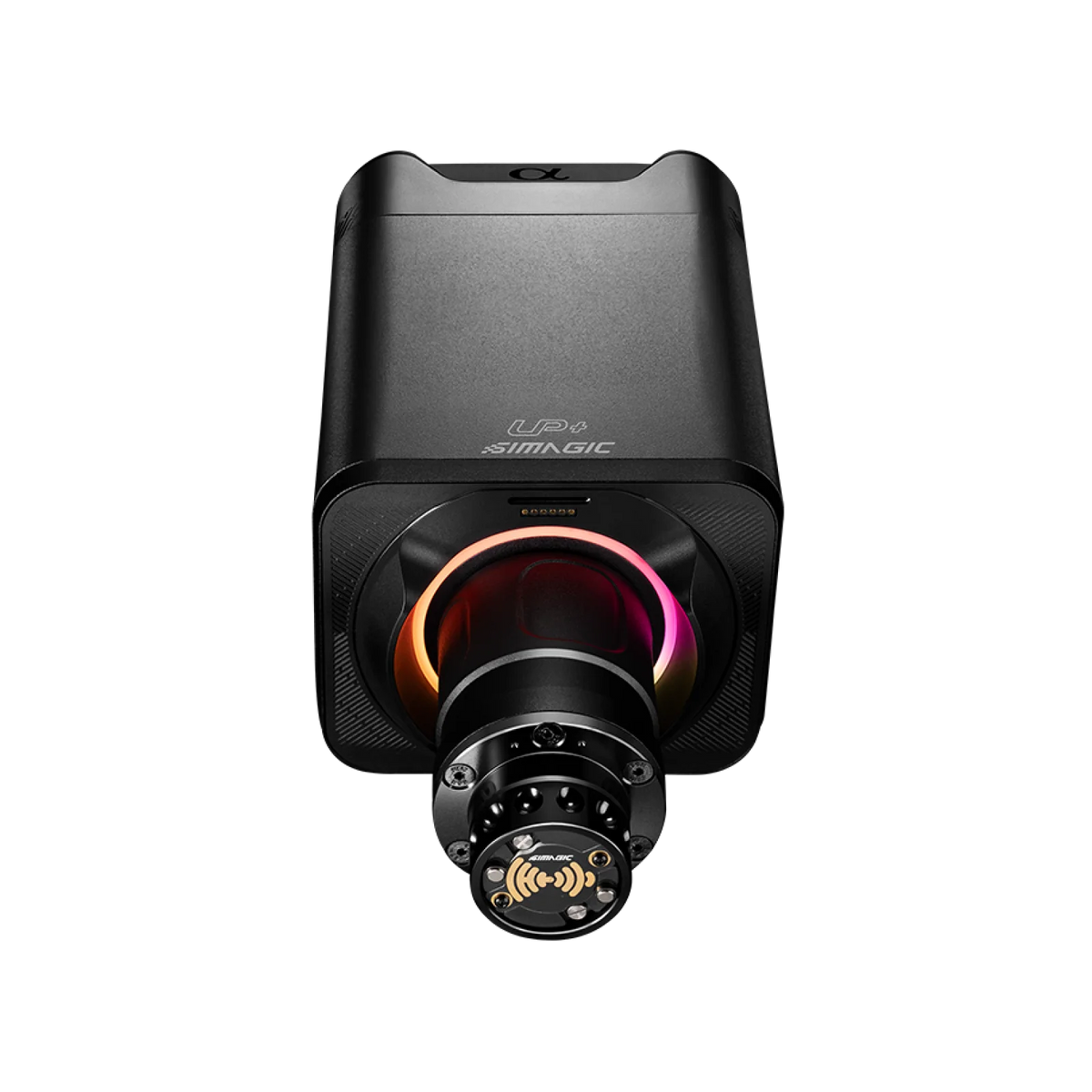

SIMAGIC EVO 12 Nm — détail du base direct‑drive

SIMAGIC

Direct‑Drive Base | EVO 12Nm | SIMAGIC

Name: Direct‑Drive Base | EVO 12Nm | SIMAGIC
Brand: SIMAGIC
Price: 714.00 CAD
Availability: InStock

$714.00 CAD

Available now at PassionSim

SIMAGIC EVO 12 Nm — powerful and precise Direct-Drive base, smooth force feedback, active cooling, perfect for competitive Sim Racing.

Alpha EVO bases recognise the Zeus Formula, Zeus GT and Zeus Sport wheels with no accessory, and take the MagicDash 4 on the front. Our Simagic Zeus ecosystem guide explains what to add for your setup.

Don't miss the deal

Days

Hours

Mins

Secs

In stock

Free shipping over $200

Support technique 24/7

Established brand

12 Nm

21-bit encoder

6.236 kg

281 mm

Aluminum

Active Cooling

Wireless

Quick Release

Manufacturer Warranty

Complete your cockpit

A SIMAGIC base works with a wheel, pedals and a rigid mount. Here is the logical next step.

This item

Direct‑Drive Base | EVO 12Nm | SIMAGIC

Wheel

Steering Wheel | GT NEO | SIMAGIC300 mm carbon GT wheel, supplied with the QR50 quick release.View product

$325.00

Pedals

Pedals | P1000 | SIMAGICModular, high-resolution sensors, haptic or hydraulic options.View product

$540.00

Cockpit mounting

Accessory | EVO front attachment | SIMAGICCNC aluminium front mount for Alpha EVO bases: a stiffer cockpit.View product

$63.00

Bundle total

In detail

SIMAGIC EVO 12 Nm Direct-Drive Base: power, precision and total immersion

Immersion and realistic sensations

With its 12 Nm of torque and its 21-bit encoder, the EVO transmits every detail of the track — vibrations, mass transfers, asperities — for total immersion in the race.

Precision and control

Zero-Cogging and the DFDF algorithm guarantee smooth and crisp force feedback, allowing for quick corrections and ultra-precise steering, even in the tightest turns.

Endurance and performance

The Hyper Cooling active cooling system keeps the base at optimal temperature, ensuring consistent performance during long sessions or competitions.

Modularity and scalability

Compatible with many steering wheels and additional modules, the EVO 12 Nm adapts to your cockpit and evolves with your equipment, offering flexibility and personalization.

Features

12 Nm of torque from an ultra-low inertia servo motor
Zero-Cogging technology and the DFDF algorithm: smooth force feedback with no notching
21-bit encoder and 20 kHz response rate for instant corrections
180 MHz processor with 3rd Filter dynamic filtering supported
Hyper Cooling active cooling: constant torque through long sessions
Wireless power supported, for a cockpit with no visible cables
Compatible with QR50, QR70 and QR-A, so open to third-party wheels

Technical Specs

General
Brand	SIMAGIC
Model	Alpha EVO 12 Nm
Type	Direct Drive wheelbase
Dimensions	130 x 110 x 281 mm
Net weight	6.236 kg
Material	Cast aluminium
Motor & force feedback
Maximum torque	12 Nm
Motor type	Ultra-low inertia servo motor
Encoder resolution	21 bits
Processing frequency	180 MHz
Response rate	20 kHz
Dynamic filter	3rd Filter supported
Cooling	Active (Hyper Cooling)
Mounting & compatibility
Quick release	QR50, QR70, QR-A
Wireless power	Supported
In the box
Included accessories	USB-B cable, USB-C cable, 1.5 m power supply, wheelbase power, installation kit

FAQ

A few questions we're often asked about this product.

Our team of experts is here to answer any question you have.

Why is the Alpha EVO 12 Nm so often recommended?

Because 12 Nm is the market's sweet spot: enough torque to reproduce weight transfer and understeer realistically, without crossing the point where a reinforced chassis becomes mandatory, and without the physical fatigue the most powerful bases bring over a long race.

Does active cooling make a practical difference?

Yes, over time. Hyper Cooling holds the base at temperature so torque stays constant from first lap to last. Without ventilation, a base gradually reduces output to protect itself, usually late in a stint, exactly when you most need reliable feel.

Can this base grow with my rig?

Yes. It works with a wide range of wheels, including third-party ones through 50 and 70 mm quick releases or the QR-A, and accepts the range's add-on modules. The electronics run a 21-bit encoder, a 180 MHz processor and a 20 kHz response rate, with the 3rd Filter dynamic filter.
