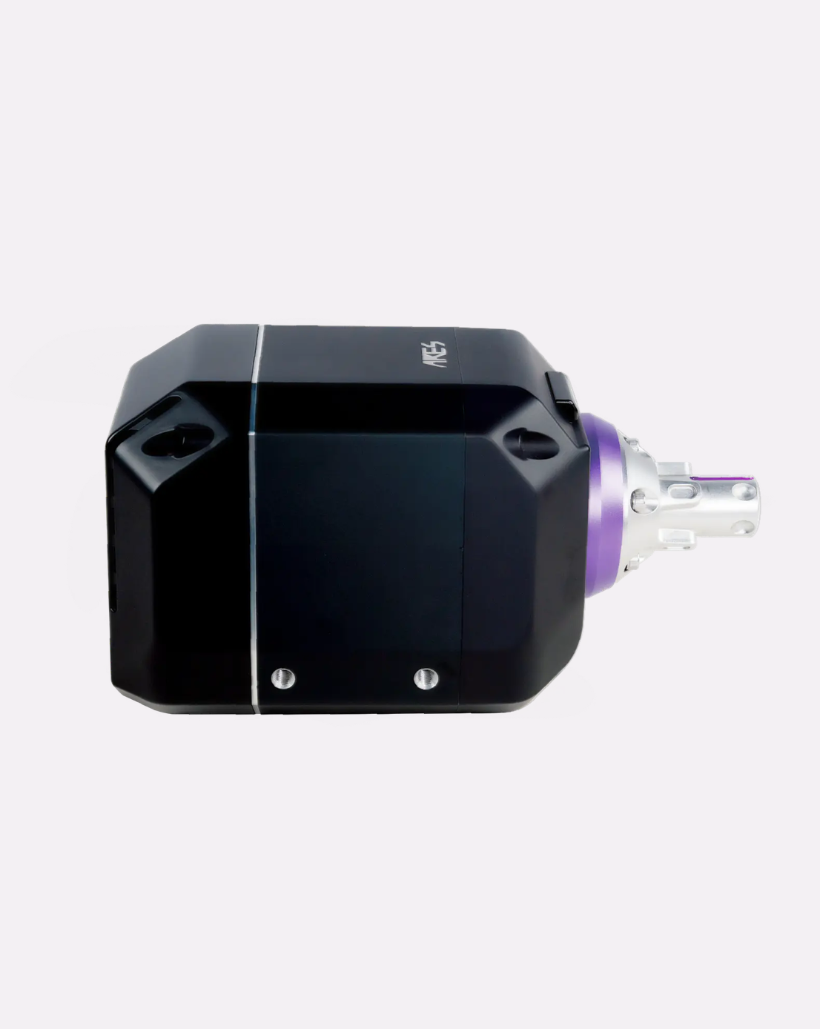

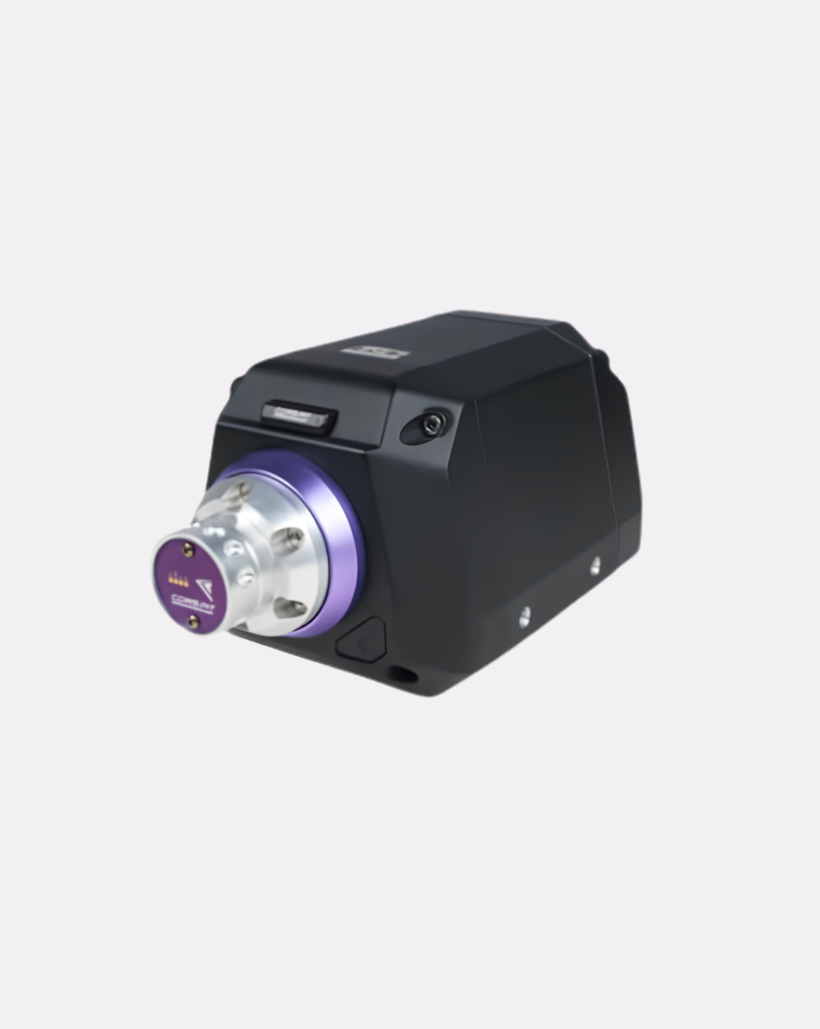

Conspit ARES 12 Nm Direct Drive Wheelbase
CONSPIT ARES 12 — base direct drive, vue 2

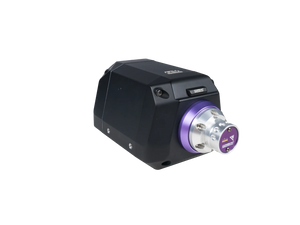

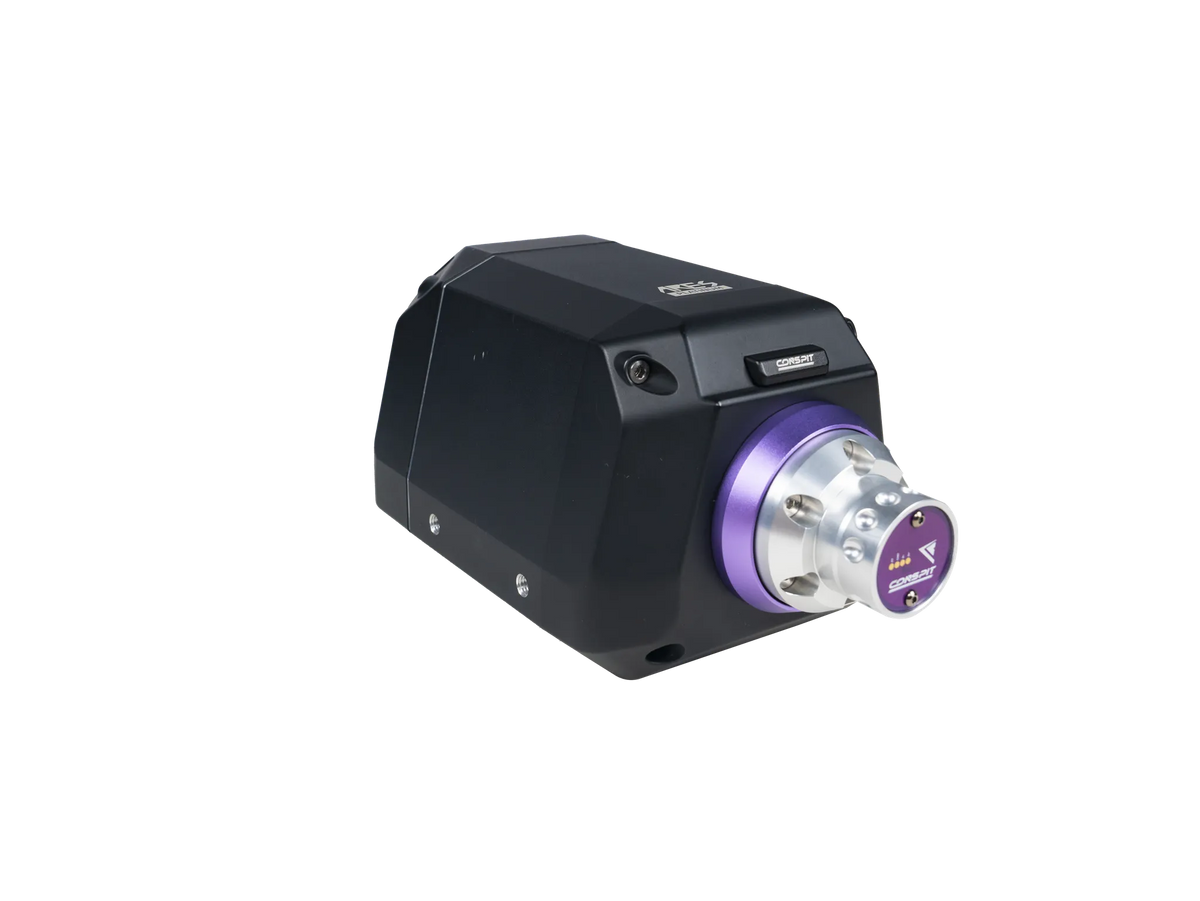

CONSPIT ARES 12 — base direct drive, vue 3

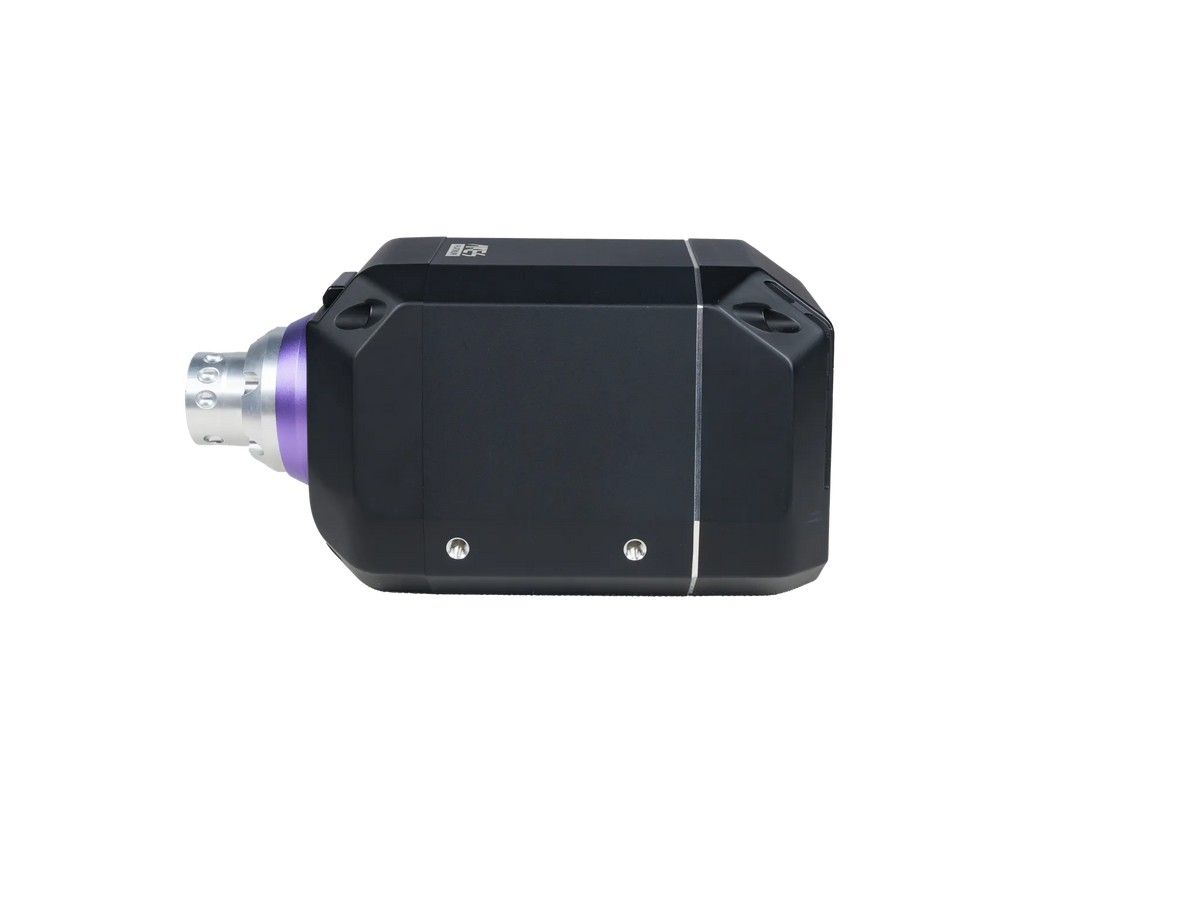

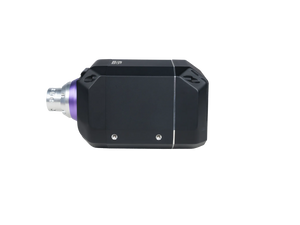

CONSPIT ARES 12 — base direct drive, vue 4
Conspit ARES 12 Nm Direct Drive Wheelbase
CONSPIT ARES 12 — base direct drive, vue 2
CONSPIT ARES 12 — base direct drive, vue 3
CONSPIT ARES 12 — base direct drive, vue 4
Vendor:CONSPIT
(1 Reviews)

Conspit ARES 12 Nm Direct Drive Wheelbase

Sale price $755.00 CAD
Available now at PassionSim

The CONSPIT ARES 12 Direct Drive Base delivers an immersive racing simulation experience with exceptional precision and responsiveness.

Don't miss the deal

000
00 Days
00
00 Hours
00
00 Mins
00
00 Secs
Hurry, only 2 items left in stock!

Pickup available at Boutique PassionSim

Usually ready in 24 hours

Available locations

Conspit ARES 12 Nm Direct Drive Wheelbase

Conspit ARES 12 Nm Direct Drive Wheelbase

  • Boutique PassionSim

    Pickup available, usually ready in 24 hours

    990 Rue des Ibis, Québec QC G3K 1L7, Canada

    +15819805653
    Get direction
Free shipping over $200
Support technique 24/7
Established brand
12 Nm
encodeur
23-bit encoder
charge
5.6 kg
USB 3.0
PC Compatible
connexion
Quick Release
garantie
Manufacturer Warranty
Complete your cockpit

Here is what makes it usable: a wheel, the CDP quick release on the wheel side, pedals and an emergency stop.

This item
Conspit ARES 12 Nm Direct Drive Wheelbase
Wheel
Conspit 300GT Steering Wheel300 mm GT wheel in carbon and aluminium, 2.99" display and 48 LEDs: 1,150 g without quick release.View product
$601.00
Wheel-side quick release

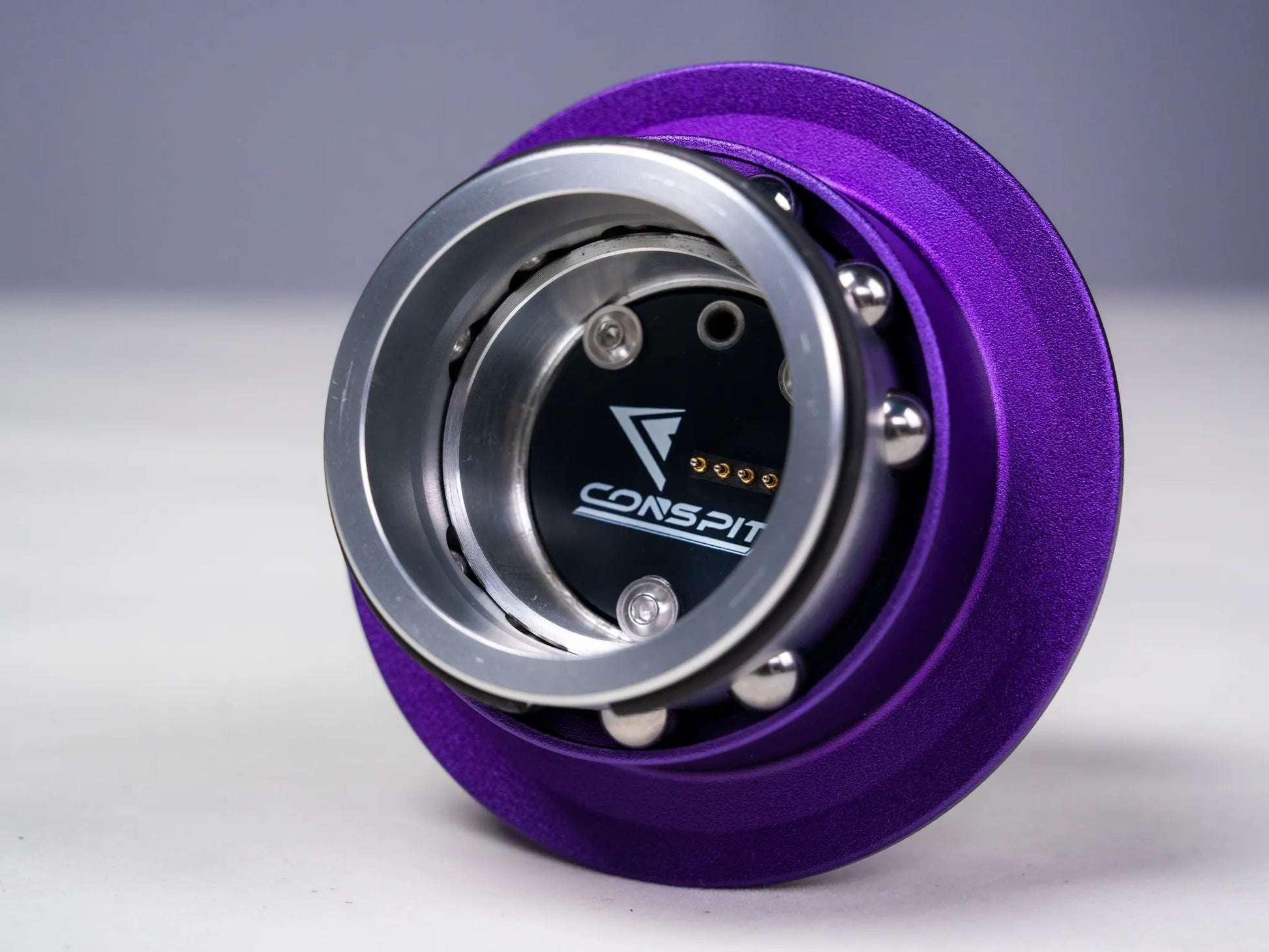

Conspit CDP Quick ReleaseThe system for ARES 12 and 20 bases. Conspit wheels are sold without a quick release.View product
$95.00
Pedals
Conspit CPP EVO V2 Hydraulic PedalsUp to 200 bar, 20 MPa sensor, built-in M-DVF vibration module.View product
$1,049.00
Safety

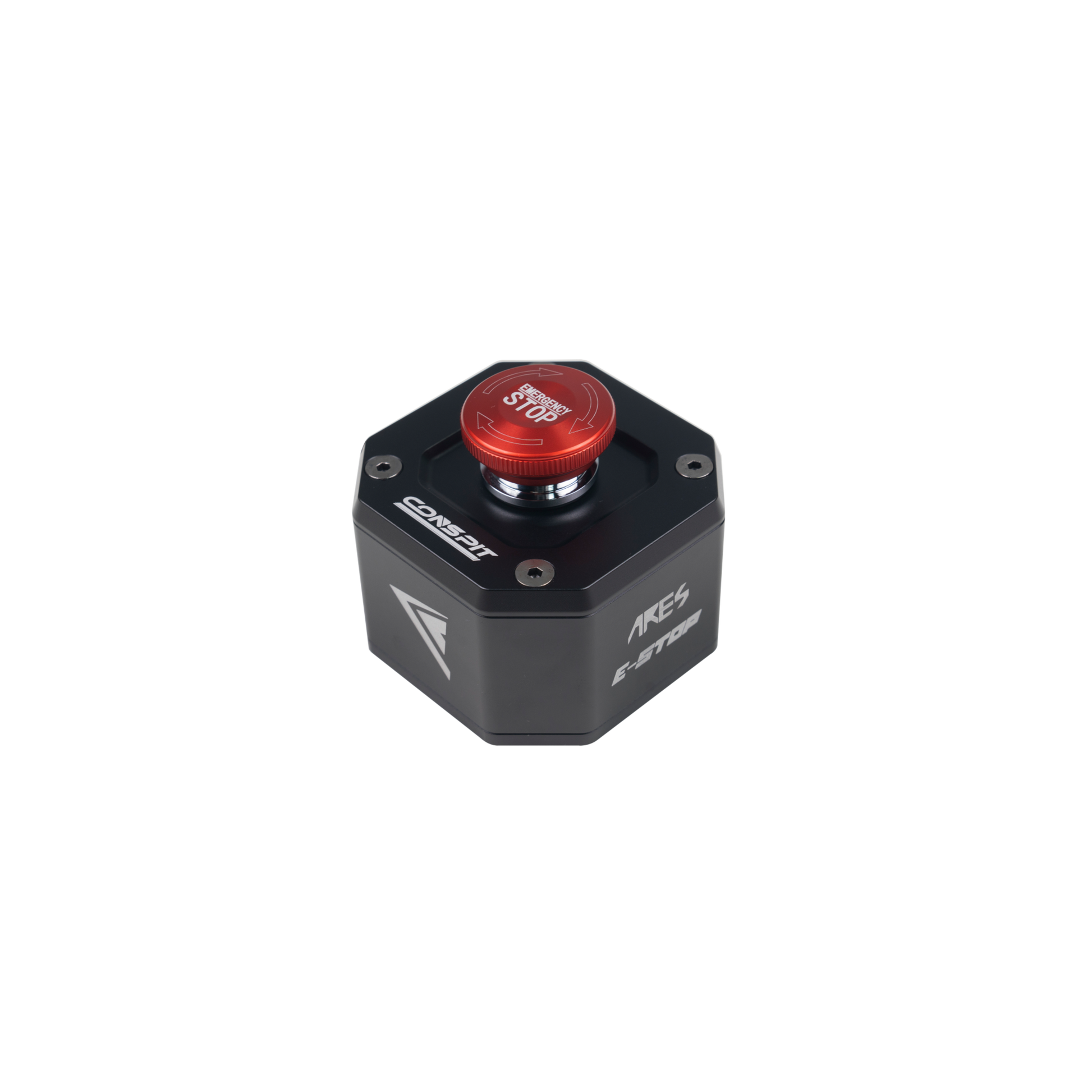

Conspit CES E-Stop Emergency SwitchCuts power with a single press. Essential safety as soon as you drive a high-torque base.View product
$69.00
Cockpit mounting

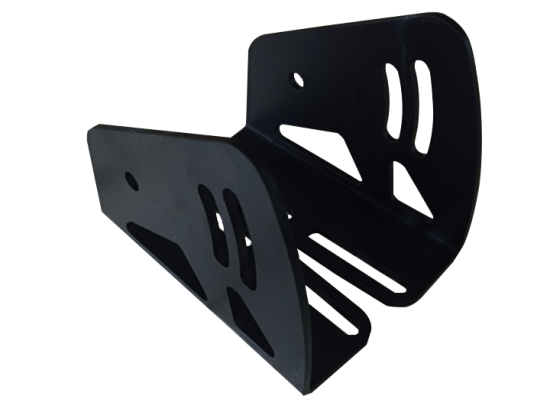

Conspit ARES Base Stand for Aluminium ProfileARES base support for aluminium-profile cockpits, no extra drilling.View product
$55.00
Bundle total

In detail

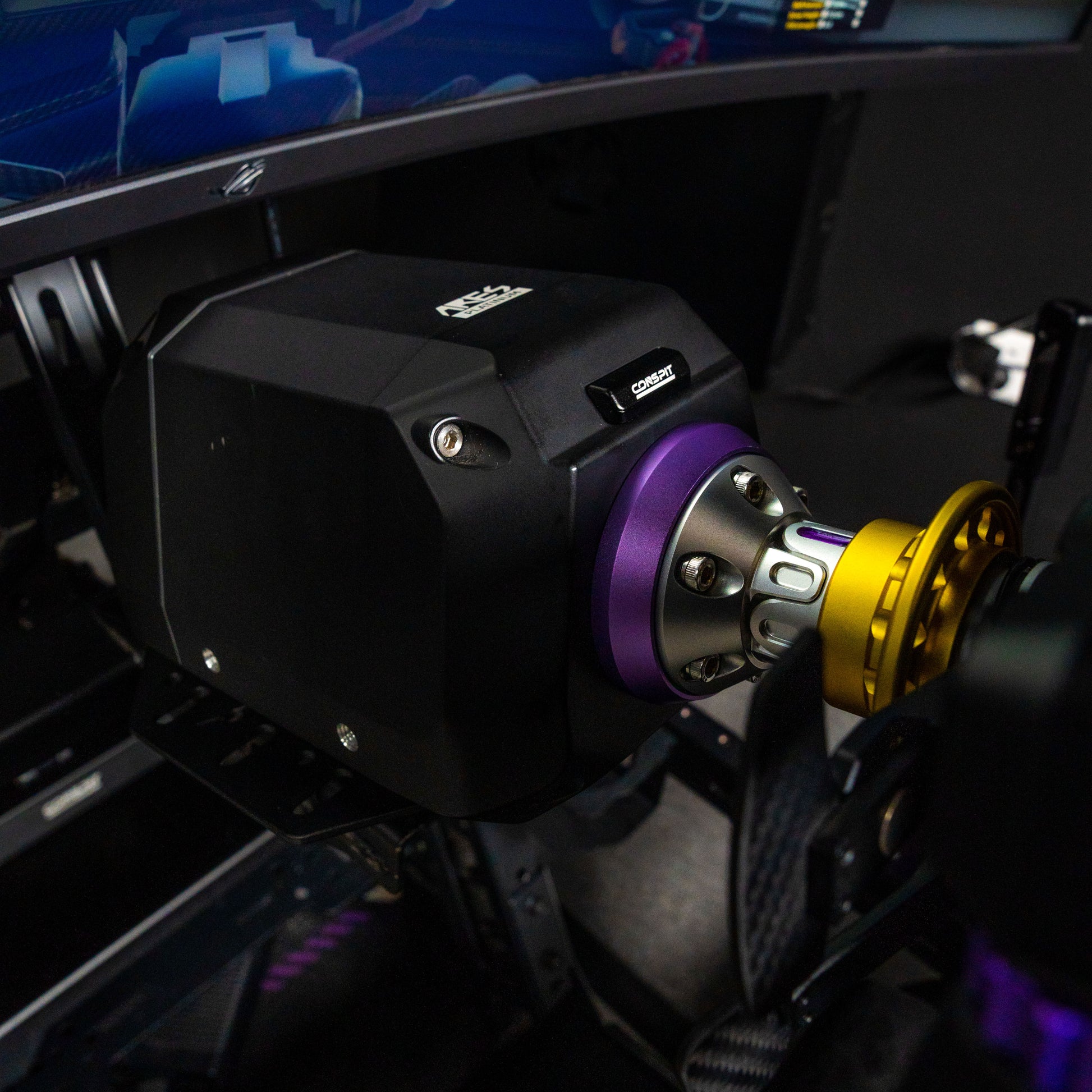

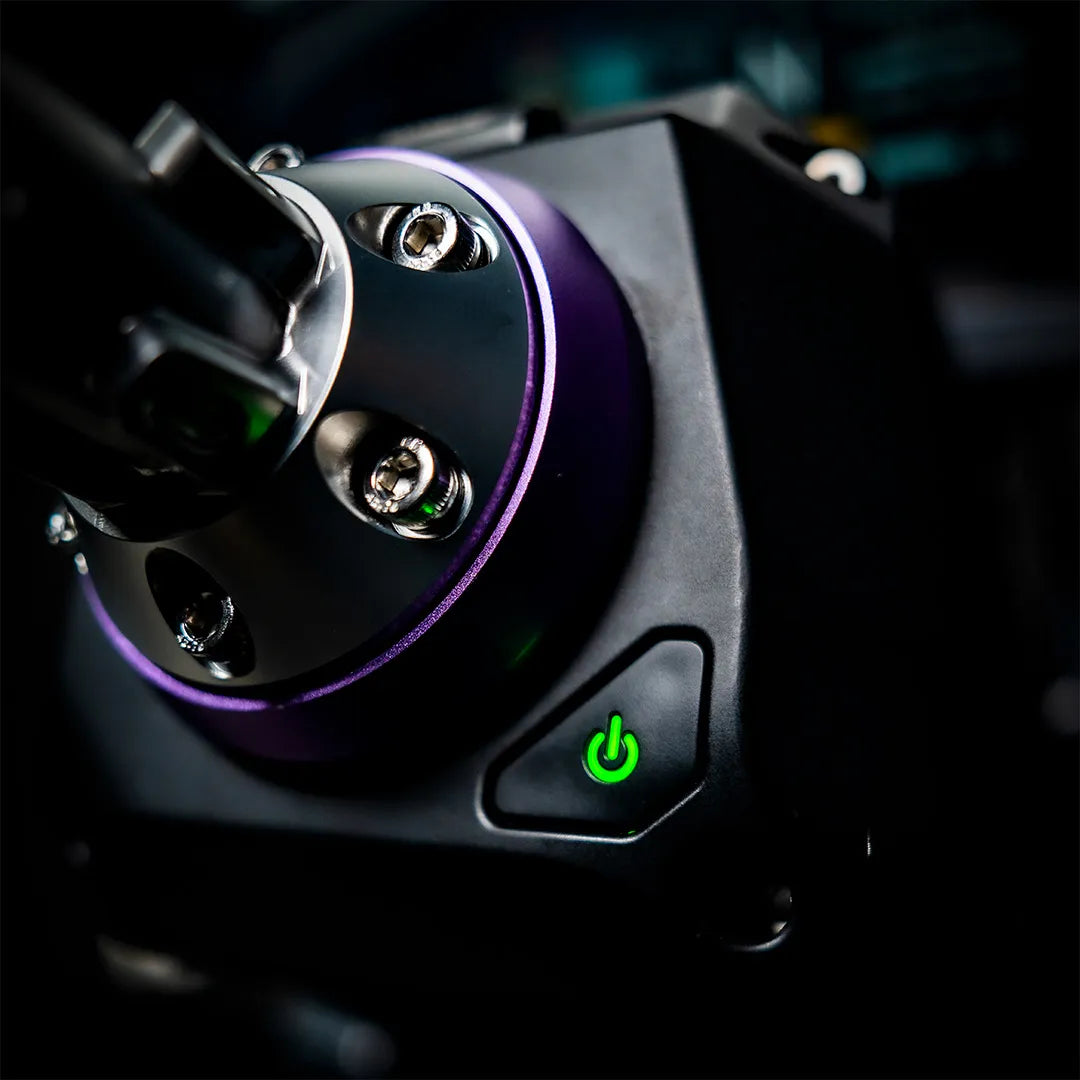

Base Direct Drive CONSPIT ARES 12: performance and precision for demanding pilots

Conspit ARES 12 Nm Direct Drive Wheelbase 01 / 04

Dual rotor bias pole motor

The dual-rotor biased pole motor is specifically designed for racing simulation, providing fast and precise response to steering inputs.

02 / 04

High precision optical encoder

The 23-bit optical encoder provides angular resolution of less than 0.01°, capturing every steering movement with exceptional precision.

03 / 04

Ultra-fast torque response

With a torque response of 12 Nm/ms, the ARES 12 base provides smooth and responsive force feedback, enhancing immersion and control.

04 / 04

Aircraft-grade aluminum construction

The aircraft-grade aluminum housing provides maximum rigidity and efficient heat dissipation, ensuring consistent performance.

Features

  • 12 Nm of peak torque: enough force to feel the front end let go
  • Skew-pole dual-rotor Direct Drive motor built for sim racing
  • 23-bit optical encoder: angular resolution under 0.01°
  • 12 Nm/ms torque response for instant corrections
  • Aerospace-grade aluminium housing, rigid and thermally stable
  • CONSPIT CDP quick release included to swap wheels in seconds
  • Compact 5.6 kg format, bolted through M6 underneath or M8 on the sides

Technical Specs

General
Brand CONSPIT
Model ARES 12
Type Direct Drive wheelbase
Dimensions 134 x 150 x 260 mm
Net weight 5.6 kg
Motor & force feedback
Maximum torque 12 Nm
Motor Skew-Pole Direct Drive
Encoder 23-bit high-resolution optical
Torque response 12 Nm/ms
Mounting
Quick release CONSPIT CDP Quick Release System
Mounting M6 x 4 (bottom), M8 x 4 (sides)
Emergency stop CES E-Stop (optional)
Connectivity & compatibility
Platform PC (Windows)
Connection Direct USB
Cable USB 3.0 cable included
Software CONSPIT LINK 2.0

FAQ

A few questions we're often asked about this product.

Our team of experts is here to answer any question you have.

It's a good balance point: enough force to feel weight transfer and understeer arriving, without demanding the reinforced chassis the most powerful bases require. Below it, at 8 Nm, you're still in desk territory. Above 15 Nm, a rigid cockpit becomes mandatory.

Via four M6 bolts underneath or four M8 bolts on the sides, so you can choose between a bottom or side mount depending on your chassis geometry. At 134 x 150 x 260 mm and 5.6 kg it stays compact. A sturdy desk clamp can work, but an extrusion rig makes better use of 12 Nm.

Setup runs through CONSPIT LINK 2.0 on Windows, with a direct USB connection over a USB 3.0 cable. On the wheel side it uses CONSPIT's CDP quick release system, and the USB-A adapter also lets you keep a USB wheel from another brand.
