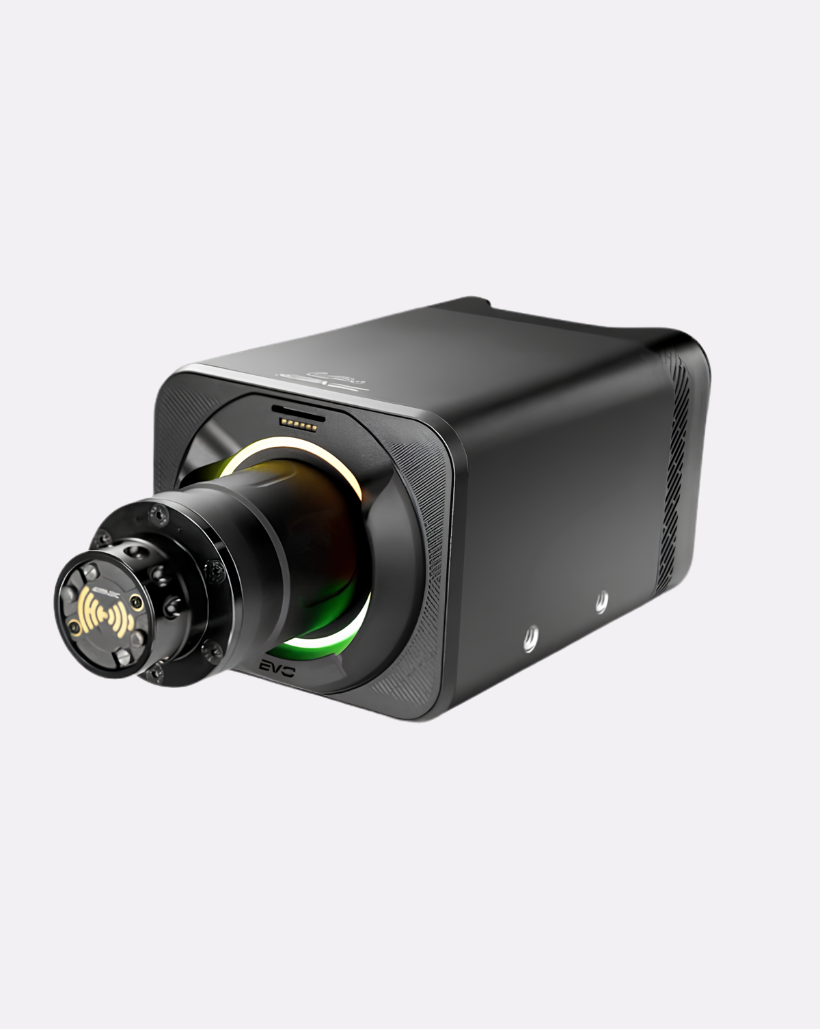

Direct‑Drive Base | EVO Pro 18 Nm | SIMAGIC
SIMAGIC EVO Pro 18 Nm — base direct‑drive, vue 2

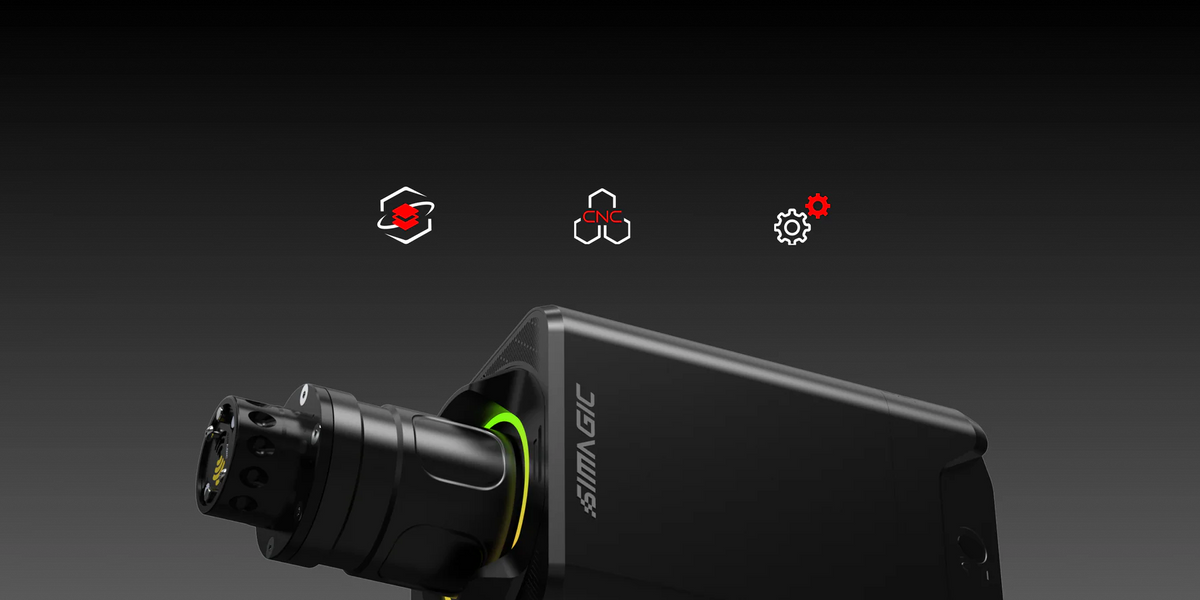

SIMAGIC EVO Pro 18 Nm — détail du base direct‑drive
Direct‑Drive Base | EVO Pro 18 Nm | SIMAGIC
SIMAGIC EVO Pro 18 Nm — base direct‑drive, vue 2
SIMAGIC EVO Pro 18 Nm — détail du base direct‑drive
Vendor:SIMAGIC

Direct‑Drive Base | EVO Pro 18 Nm | SIMAGIC

Sale price $910.00 CAD
Available now at PassionSim

SIMAGIC Alpha EVO Pro 18 Nm — ultra-powerful Direct-Drive base, precise and smooth force feedback, active cooling, for pro and competitive Sim Racing.

Don't miss the deal

000
00 Days
00
00 Hours
00
00 Mins
00
00 Secs
In stock
Free shipping over $200
Support technique 24/7
Established brand
18 Nm
encodeur
21-bit encoder
charge
8.627 kg
317 mm
Aluminum
refroidissement
Active Cooling
sans_fil
Wireless
connexion
Quick Release
garantie
Manufacturer Warranty

In detail

SIMAGIC Alpha EVO Pro 18 Nm Direct-Drive Base: designed for competitive Sim Racing

Direct‑Drive Base | EVO Pro 18 Nm | SIMAGIC 01 / 04

Power and immersion

With its 18 Nm of torque, the EVO Pro faithfully reproduces every weight transfer, cornering motion, and vibration of the asphalt. Drivers feel every detail of the track, for maximum immersion in every race.

02 / 04

Extreme precision

The combination of Zero-Cogging and the 21-bit encoder ensures smooth and precise force feedback, allowing for instant corrections and total control of the steering wheel, even in the most intense situations.

03 / 04

Endurance and reliability

The Hyper Cooling system prevents the motor from overheating, ensuring constant torque and reliable performance during long sessions or endurance competitions.

04 / 04

Modularity and compatibility

The EVO Pro features numerous CAN, CAN-FD, and USB ports for connecting third-party dashboards, modules, or accessories. Compatible with all SIMAGIC Quick Releases, it integrates seamlessly into your cockpit and evolves with your needs.

Features

  • 18 Nm of torque: enough to carry weight transfer without ever clipping
  • Ultra-low inertia servo motor with Zero-Cogging technology
  • 21-bit encoder paired with a 20 kHz response rate
  • 180 MHz processor with 3rd Filter dynamic filtering supported
  • Hyper Cooling: constant torque even in endurance racing
  • CAN, CAN-FD and USB ports to connect dashboards and third-party modules
  • Compatible with every SIMAGIC quick release: QR50, QR70 and QR-A

Technical Specs

General
Brand SIMAGIC
Model Alpha EVO Pro 18 Nm
Type Direct Drive wheelbase
Dimensions 130 x 110 x 317 mm
Net weight 8.627 kg
Material Cast aluminium
Motor & force feedback
Maximum torque 18 Nm
Motor type Ultra-low inertia servo motor
Encoder resolution 21 bits
Processing frequency 180 MHz
Response rate 20 kHz
Dynamic filter 3rd Filter supported
Cooling Active (Hyper Cooling)
Connectivity
Ports CAN, CAN-FD and USB
Wireless power Supported
Mounting
Quick release QR50, QR70, QR-A
In the box
Included accessories USB-B cable, USB-C cable, 1.5 m power supply, wheelbase power, installation kit

FAQ

A few questions we're often asked about this product.

Our team of experts is here to answer any question you have.

Torque and headroom. At 18 Nm you leave comfort behind for competition: this level faithfully reproduces the effort at the wheel of a GT3 without power steering and handles weight transfer without ever clipping. It's also larger, 130 x 110 x 317 mm at 8.627 kg versus 6.236 kg for the 12 Nm.

A genuinely rigid aluminium extrusion chassis, with a front or side mount. On a flexible structure the base sends part of its torque into the frame instead of your hands. Plan on the physical side too: an hour of racing at this setting really works your forearms.

Its CAN, CAN-FD and USB ports take dashboards, haptic modules and third-party accessories. Hyper Cooling keeps torque constant even in endurance, and the electronics combine a 21-bit encoder, a 180 MHz processor and a 20 kHz response rate.
