Available exclusively to order from PassionSim

Formula chassis | FP-Lite + seat | CONSPIT

$1,301.00 CAD

Sale Sold out

Shipping calculated at checkout.

Color: Violet

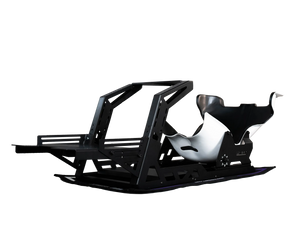

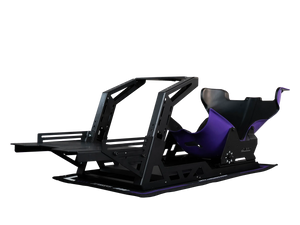

CONSPIT FP-Lite chassis: compact formula rig in 3-4 mm steel, fiberglass seat, Direct Drive chainstay and multi-brand crankset compatibility. Robust structure, modularity and authentic racing position.

View full details

FP-Lite CONSPIT: character, ergonomics and modularity

Formula chassis | FP-Lite + seat | CONSPIT

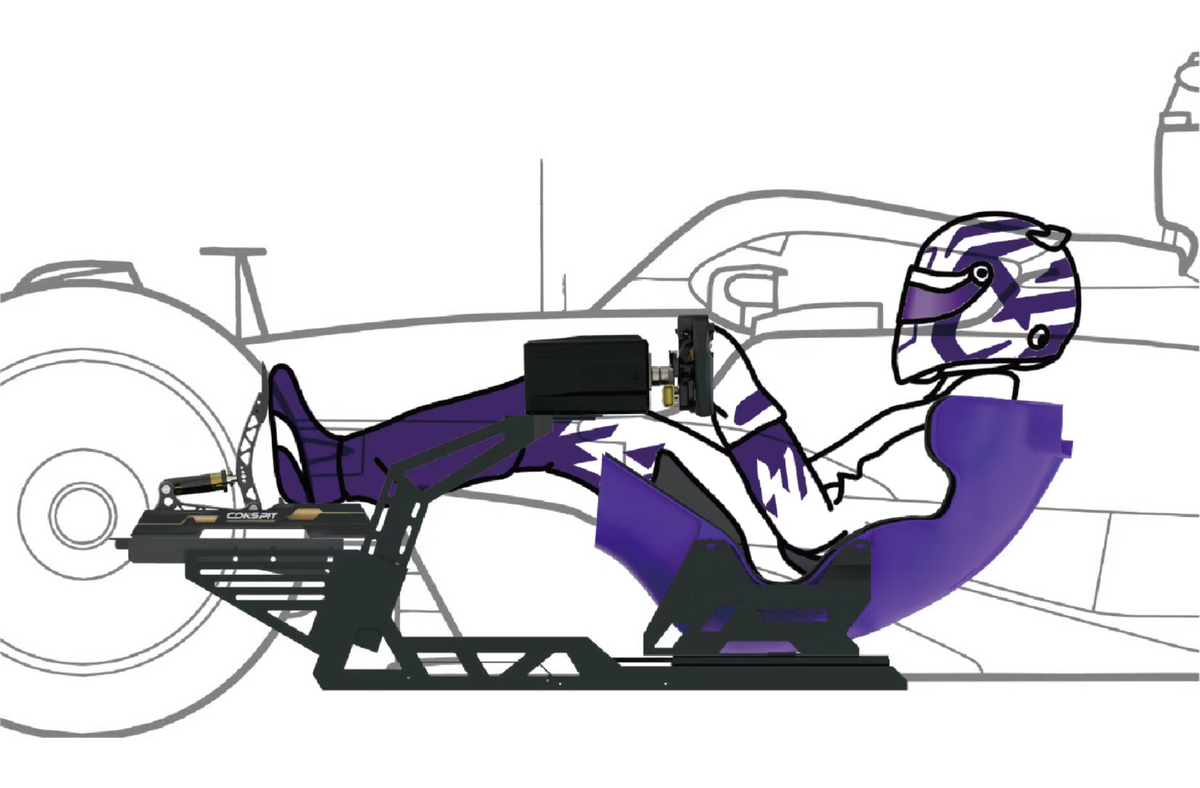

Posture Formula for total immersion

The FP-Lite rig puts you in a Formula 1-inspired driving position, with low-position seats, calibrated pedal angles, and adjustable steering wheel height. Precise alignment that replicates the feel of a single-seater, right from your first session.

Robust structure and premium finish

The 3-4mm steel plates, combined with an electrostatic powder-coated finish, ensure flex-free rigidity and durability. The FP-Lite combines strength and aesthetics to fit into any demanding setup.

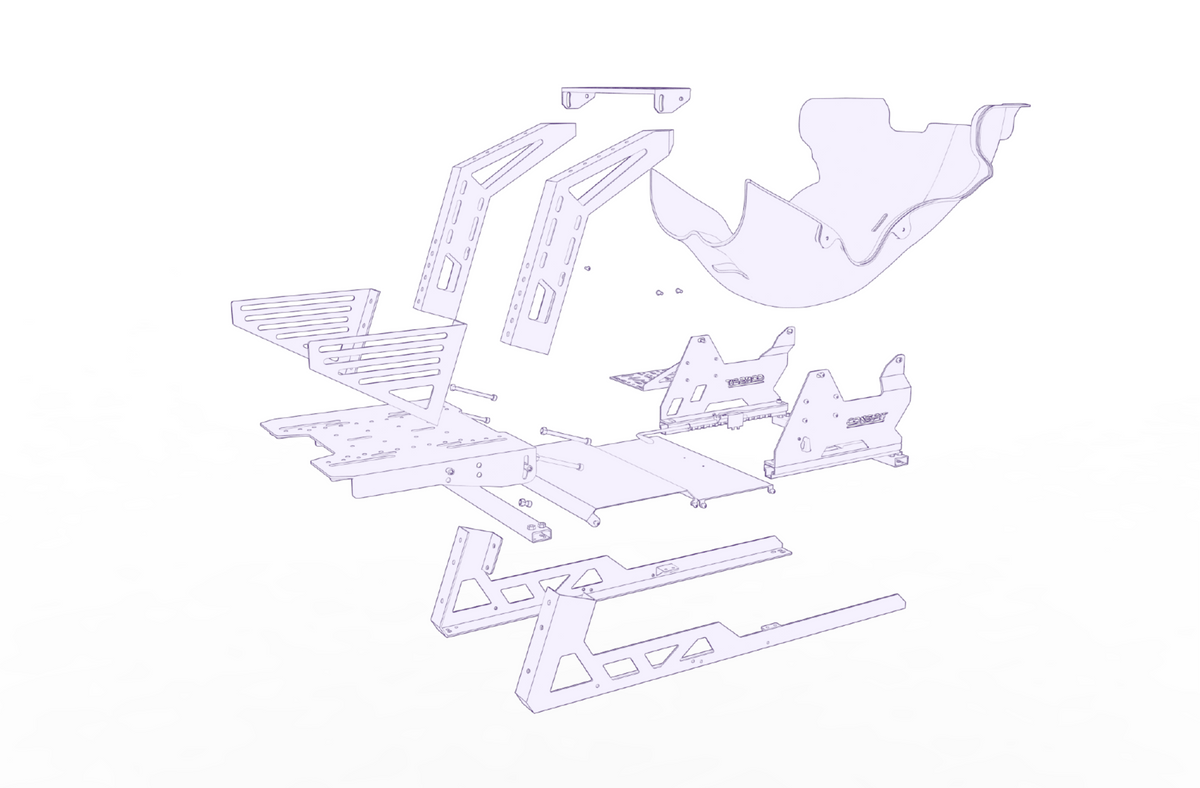

Quick installation and compact size

Thanks to its modular design and the “Easy-Assembly” system, the chassis can be assembled in less than 25 minutes. Its reduced surface area (~1 m × 0.5 m once the elements are compacted) allows it to be installed even in tight spaces without sacrificing stability.

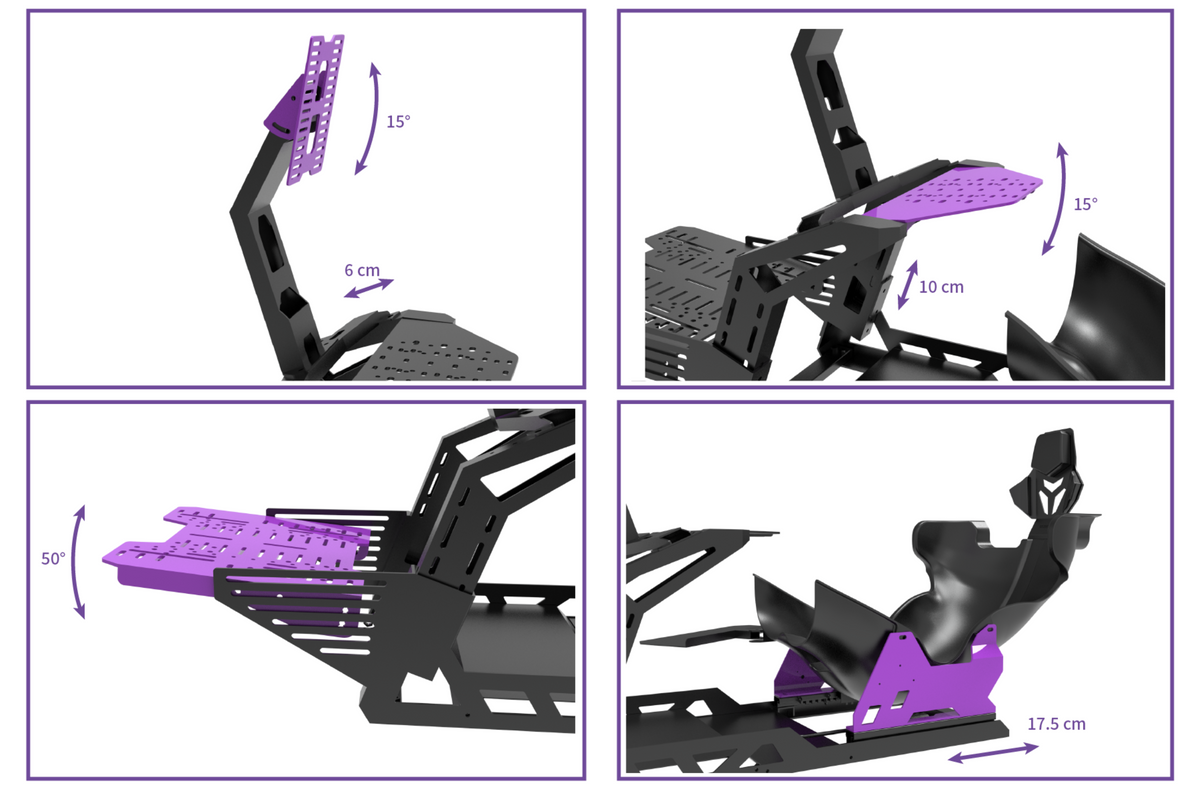

Adaptability and extensions on demand

Want to take realism even further? The FP-Lite offers mounts for monitors, shifters/handbrakes, and keyboards. You can adapt it to your preferences and equipment over time.

Specifications
- Product Name FP-Lite
- Product Dimensions 185 (max) x60x90 cm
- Net Weight approx. 30 kg
- Packaging 101x61x70 cm
- Product Craftsmanship CNC Machining / Electrostatic Spraying
- Main Material Carbon steel
- Product Color Black
- Ergonomic Design Yes
- Supported Wheelbases: ※
- Conspit Ares Platinum, Ares
- Fanatec DD PRO, CSL DD, Gran Turismo DD Pro, Clubsport V1, Clubsport V2, Clubsport V2.5
- Thrustmaster T300, TS-PC Racer, T-GT, T248, T500 RS, TX-XW Racer, TMX Force Feedback
- Simagic ALPHA, ALPHA MINI, ALPHA PRO, M10
- Logitech G920, G25, G27, G29, G923, Driving Force GT
- Moza All series
- Simucube Requires special mounting bracket
- Supported Pedals: ※
- Conspit CPP LITE, CPP EVO
- Fanatec V2, V3, CSL Elite, CSL LC
- Thrustmaster T3PM
- Simagic P500, P1000, P2000
- Moza CRP, SRP, SRP2
- HE Sprint, Ultimate
- Simucube Baseplate
