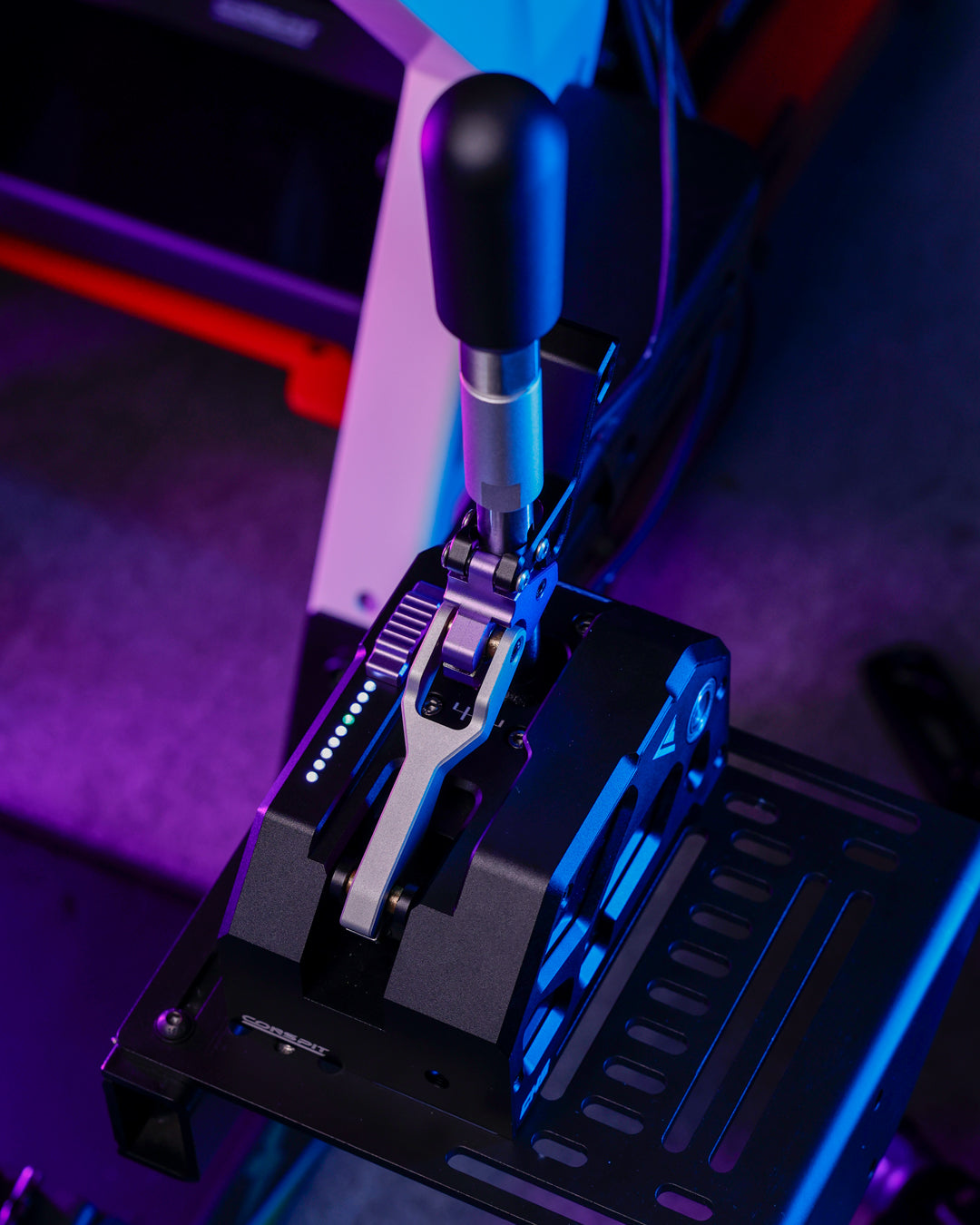

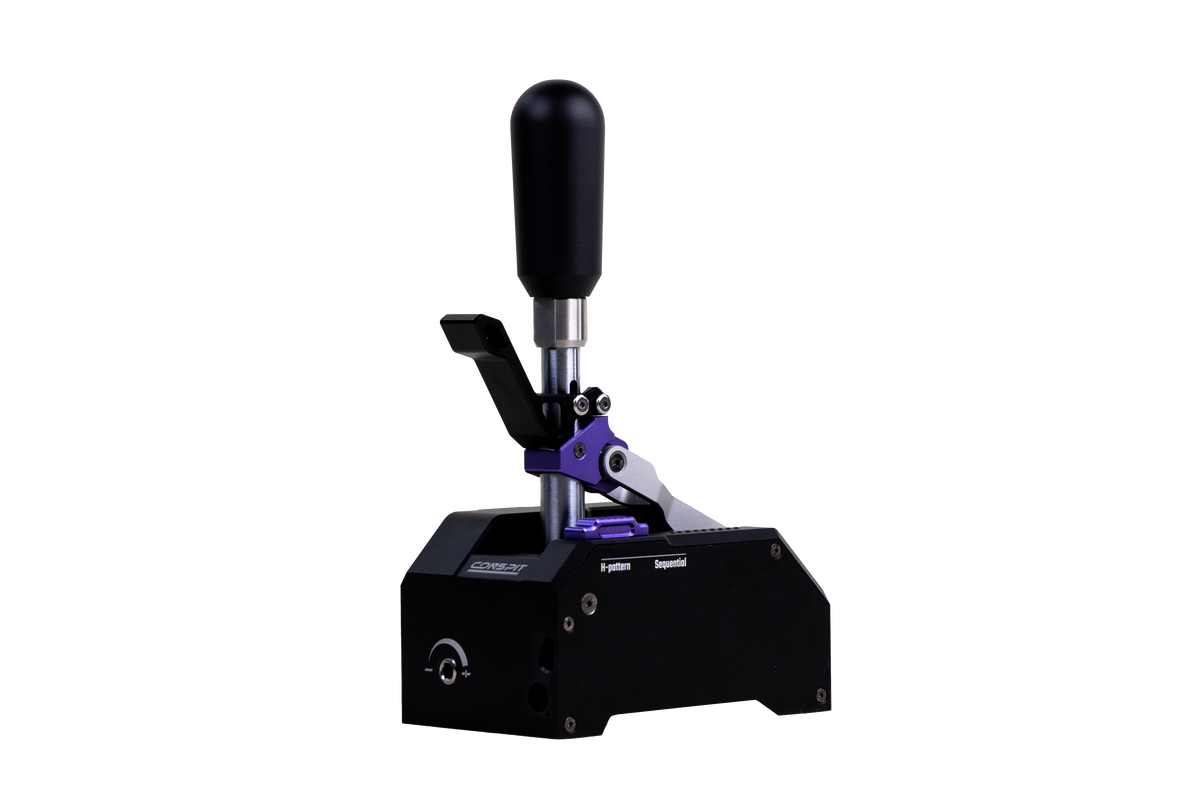

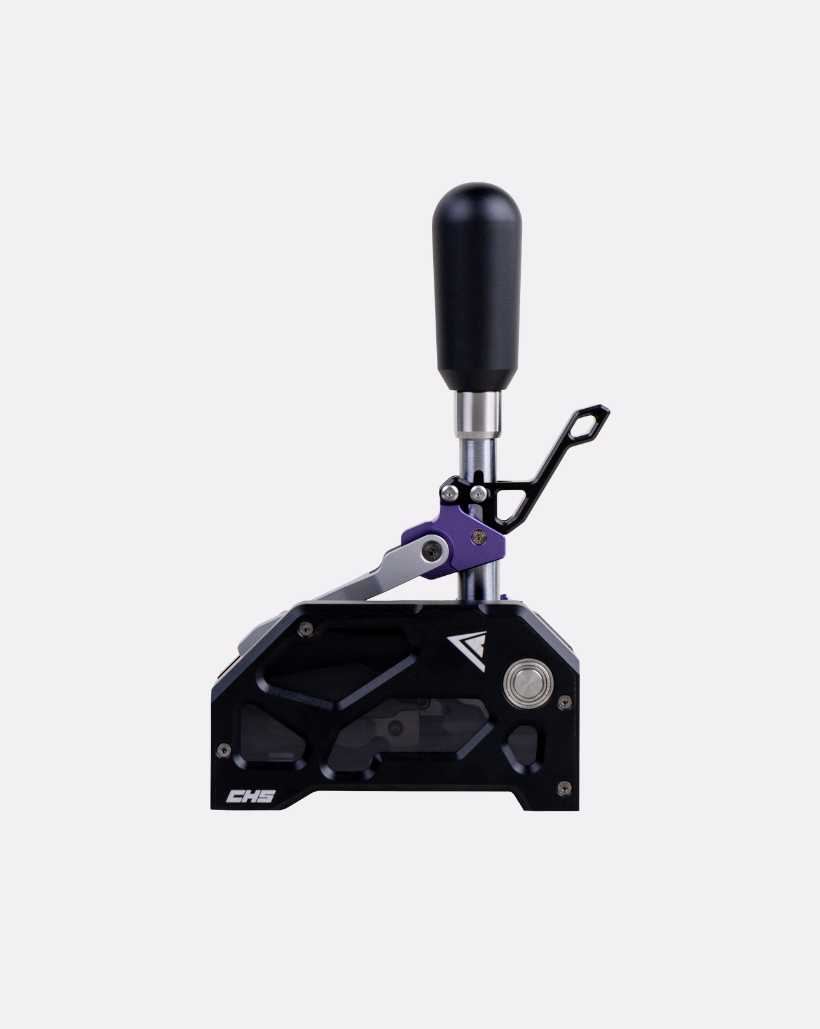

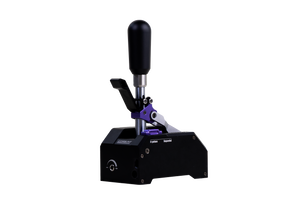

The CONSPIT CHS combines a 7+R H-pattern gearbox and a sequential mode in one full-metal shifter, with a dedicated mechanical path for each mode and a physical selector switch. It offers a 38 mm (12°) H-pattern throw, SnapShift asymmetric short-throw sequential, 3 to 10 kg adjustable resistance, Hall sensors and nine RGB LEDs, and connects to PC over USB with no CONSPIT base required.

Don't miss the deal

Days

Hours

Mins

Secs

Out of stock

Pickup currently unavailable at Boutique PassionSim

Free shipping over $200

Support technique 24/7

Established brand

7+1 speeds

H-Pattern Gate

Sequential Mode

Aluminum

SimHub Compatible

PC Compatible

Manufacturer Warranty

In detail

CONSPIT CHS shifter: H-pattern and sequential, no compromise

Two modes, two real mechanisms

Rather than locking an H-pattern's side-to-side movement to fake a sequential, the CHS has a dedicated mechanical path for each mode, selected with a physical slider.

A 7+R H-pattern, a SnapShift sequential

In H-pattern: seven gears plus reverse and a 38 mm throw. In sequential, SnapShift makes the downshift slightly shorter than the upshift for crisp changes.

3 to 10 kg of resistance

Resistance adjusts from 3 to 10 kg with a hex key, and damping adjusts separately, from a light lever to a proper race gearbox gate.

Full metal, Hall sensors and RGB LEDs

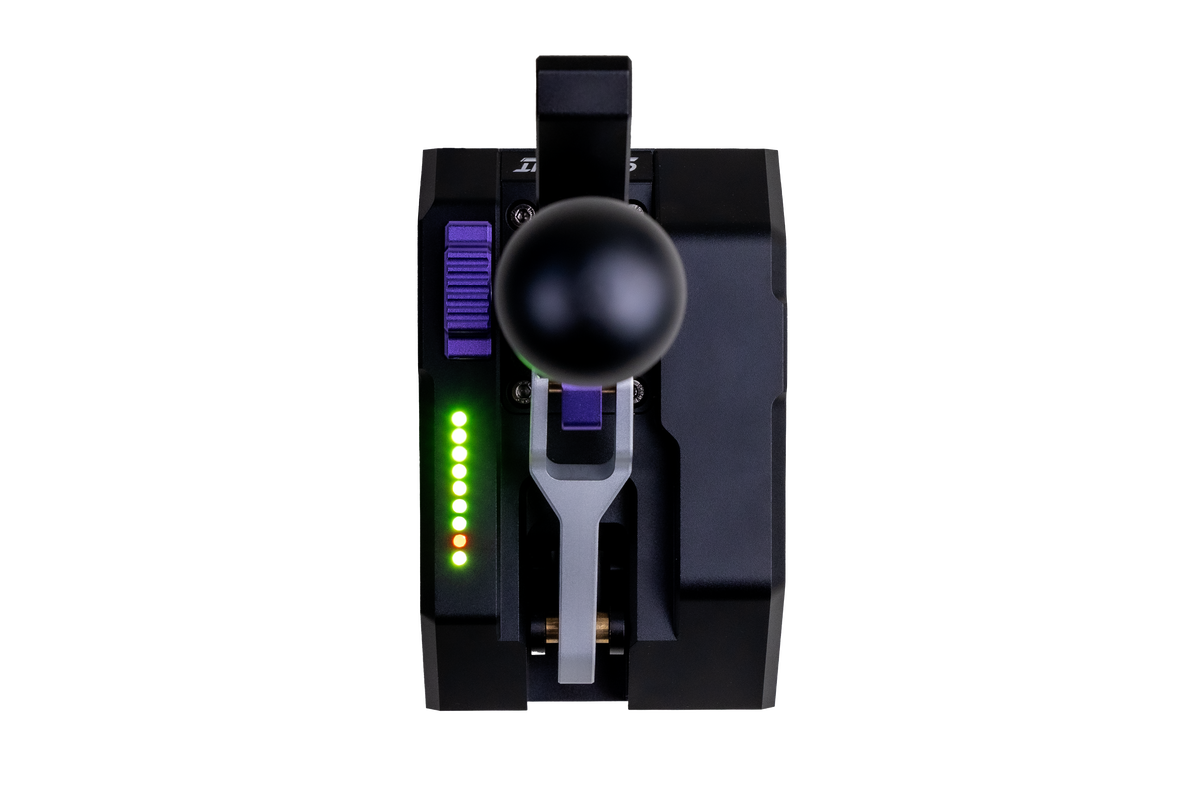

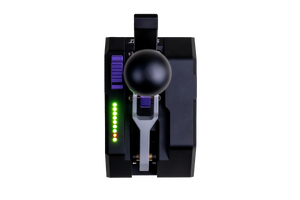

One-piece aluminium chassis, heat-treated steel load parts, contactless Hall sensors and nine RGB LEDs driven by CONSPIT Link 2.0 or SimHub. It connects over USB, no CONSPIT base needed.

Features

7+R H-pattern gearbox and sequential mode
Dedicated mechanical path for each mode, physical mode selector
38 mm (12°) H-pattern throw
SnapShift asymmetric short-throw sequential
Resistance adjustable from 3 to 10 kg, adjustable damping
Hall effect sensors, one-piece aluminium chassis
9 RGB LEDs with CONSPIT Link 2.0 and SimHub, USB with no base required

Technical Specs

General
Brand	CONSPIT
Model	CHS Dual-Mode Shifter
Type	H-pattern and sequential shifter
Dimensions	95 x 165 x 255 mm (305 mm with the 50 mm extension)
Weight	2.0 kg
Material	One-piece aluminium chassis, heat-treated 45# steel load-bearing parts
Operation
H-pattern	7 gears plus reverse, 38 mm (12°) throw
Sequential	SnapShift, asymmetric short throw
Mode selection	Physical slider
Resistance	Adjustable from 3 to 10 kg
Damping	Adjustable
Sensors	Hall effect
Lighting
LEDs	9 RGB LEDs (gear, revs, status)
Software	CONSPIT Link 2.0, SimHub compatible
Mounting and connectivity
Knob thread	M10 x 1.5

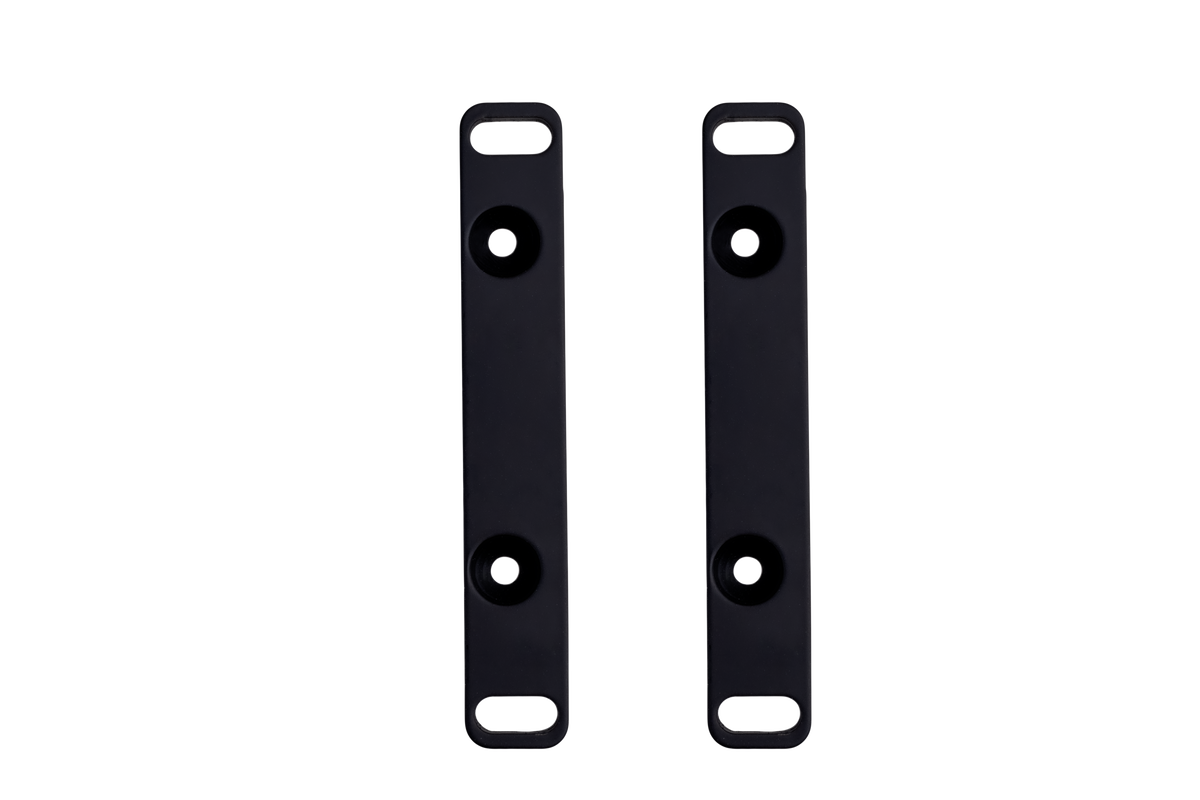

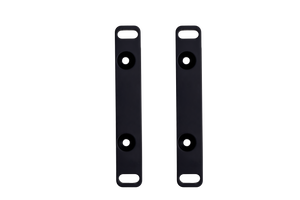

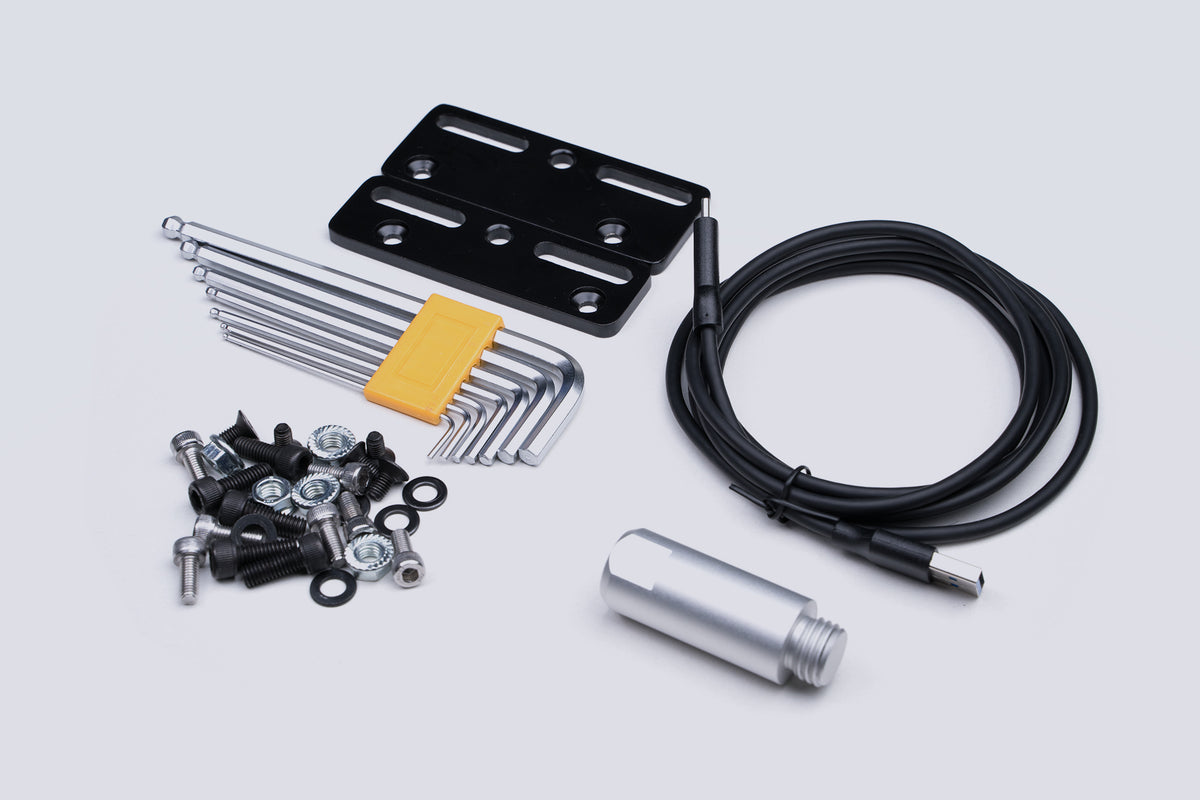

Mounting	M5 points, aluminium extrusion adapter bars included
Included	Lever extension rod
Connection	USB to PC
Platform	PC

FAQ

A few questions we're often asked about this product.

Our team of experts is here to answer any question you have.

Do I need a CONSPIT base to use the CHS?

No, the CHS plugs straight into your PC over USB and works without a CONSPIT base or any other hardware. It is PC compatible.

How do I switch between H-pattern and sequential?

With a physical slider on the shifter. Each mode has its own mechanical path: 7+R H-pattern, or SnapShift short-throw sequential.

Can I adjust how stiff the lever is?

Yes, resistance adjusts from 3 to 10 kg with a hex key, and damping adjusts separately for vibration and lever return.
