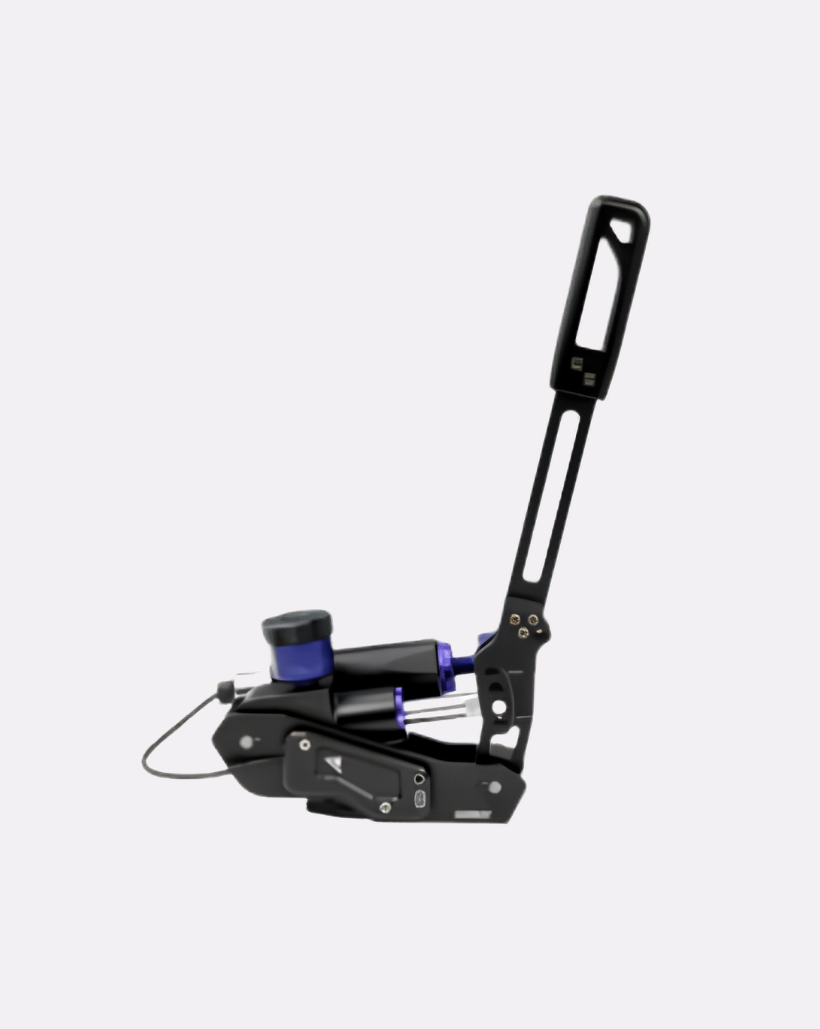

CONSPIT H3 Hydraulic — frein à main pour simulateur de course

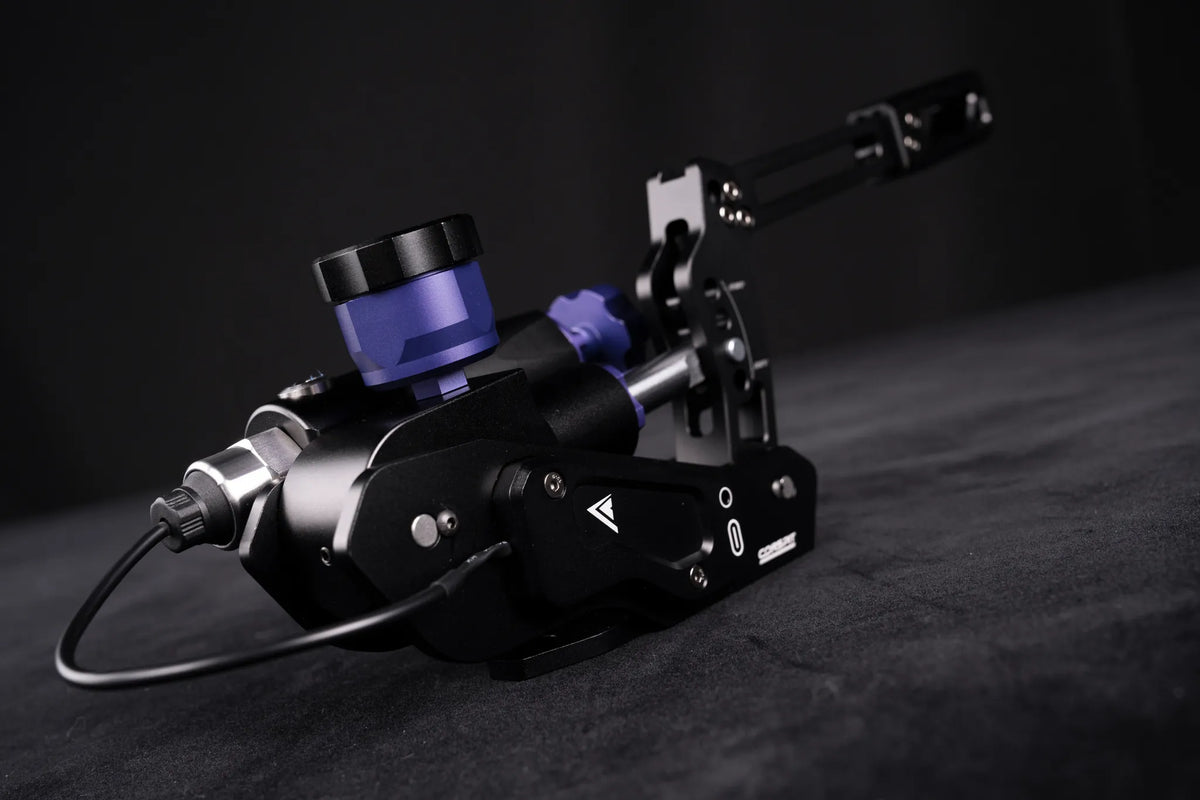

CONSPIT H3 Hydraulic — frein à main, vue 2

CONSPIT H3 Hydraulic — frein à main, vue 3

CONSPIT H3 Hydraulic — frein à main, vue 4

CONSPIT H3 Hydraulic — frein à main, vue 5

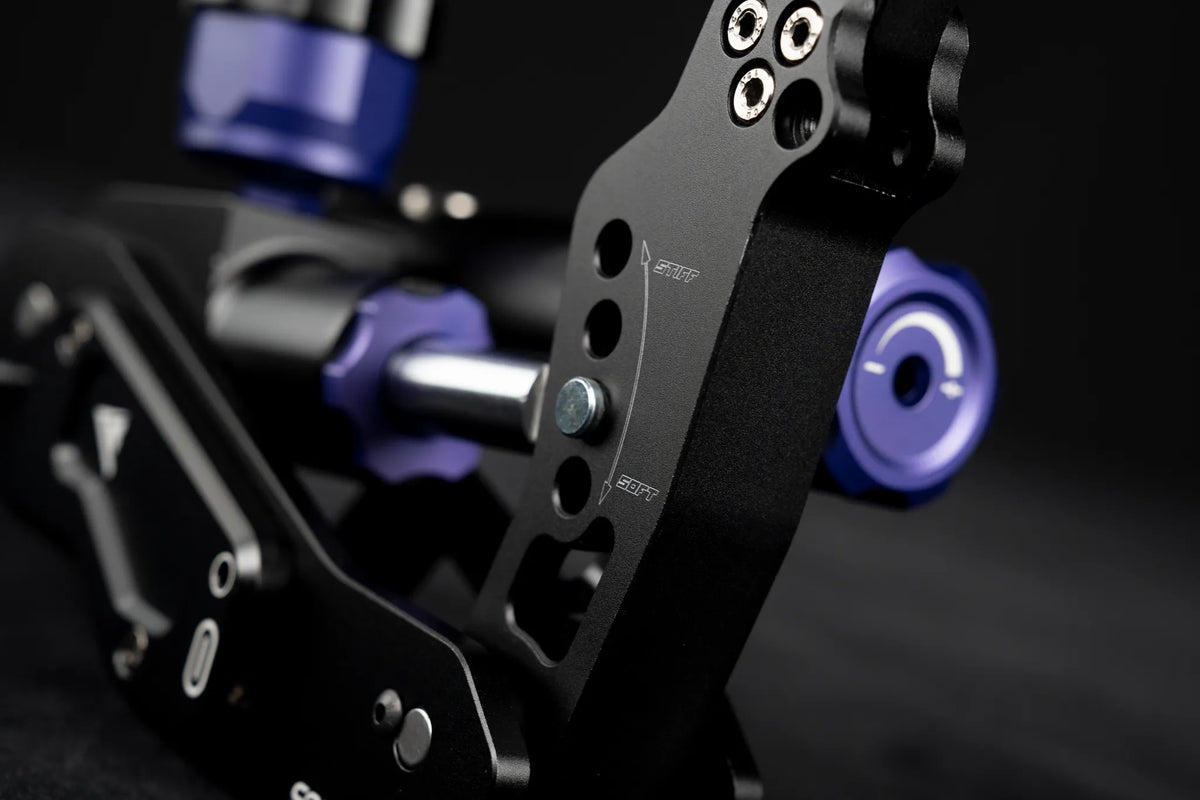

CONSPIT H3 Hydraulic — frein à main, vue 6

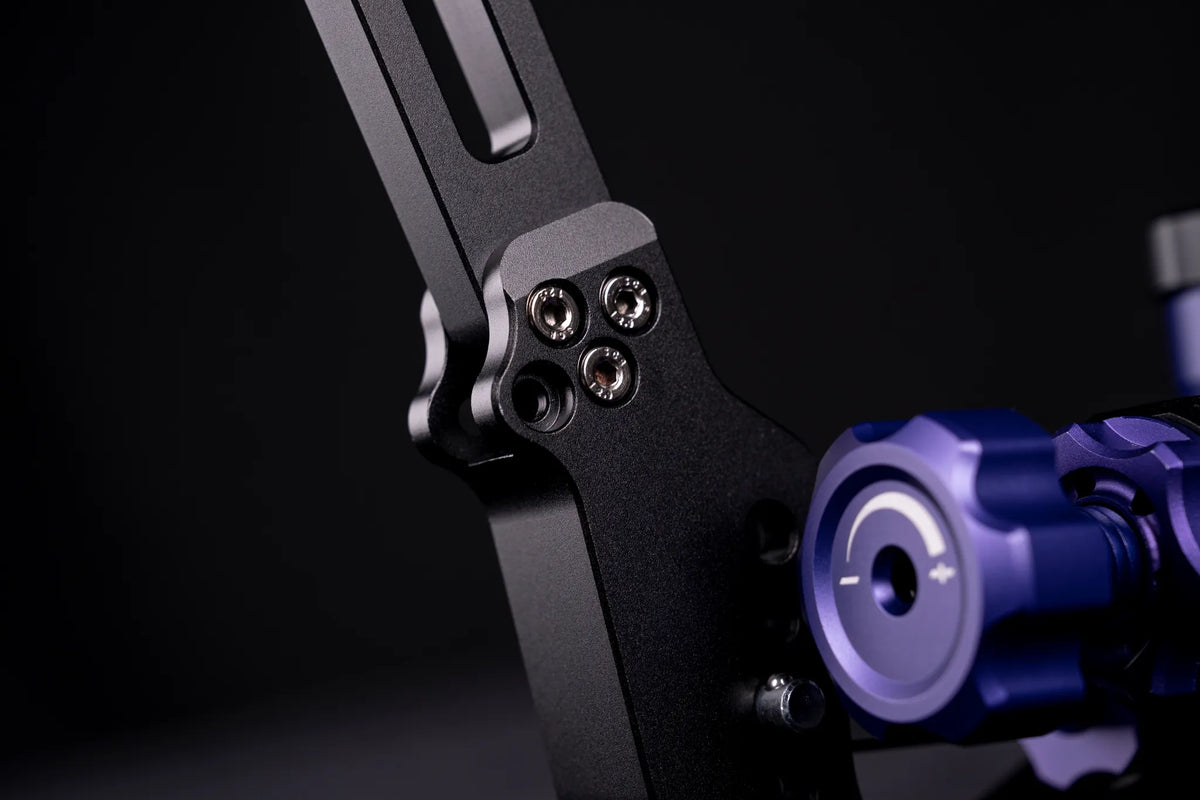

CONSPIT H3 Hydraulic — détail du frein à main

CONSPIT

(1 Reviews)

Handbrake | H3 Hydraulic | CONSPIT

Name: Handbrake | H3 Hydraulic | CONSPIT
Brand: CONSPIT
SKU: 06977068960055
Price: 430.00 CAD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

$430.00 CAD

Available now at PassionSim

The CONSPIT H3 combines high-precision hydraulic technology and adaptability to make every drift, rally or intense maneuver a fully immersive experience.

Don't miss the deal

Days

Hours

Mins

Secs

Out of stock

Pickup currently unavailable at Boutique PassionSim

Free shipping over $200

Support technique 24/7

Established brand

1.04 kg

PC Compatible

Hydraulic Technology

Manufacturer Warranty

In detail

CONSPIT H3 Handbrake: Hydraulic Robustness & Racing Feel

Cutting-edge technology for unmatched performance

The CONSPIT H3 incorporates a 2nd generation hydraulic system, offering improved damping thanks to a redesigned internal circuit. This system, combined with a high-precision hydraulic sensor, can detect even the most subtle variations in force, thus ensuring optimal control during intense braking phases.

Robust and ergonomic design

Made from CNC aluminum alloy, the H3 combines lightness and strength. Its ergonomic design, with a dual lever position, adapts to different driving styles, whether drifting or rallying. The lever can be easily adjusted to match the classic or competitive position, thus offering maximum flexibility.

Reduced maintenance for extended use

The CONSPIT H3 is equipped with a maintenance-free oil reservoir, designed for extended use without the need for maintenance. This feature allows riders to focus on their performance without worrying about regular maintenance of the hydraulic system.

Wide compatibility for easy integration

The H3 is compatible with PC via USB, CONSPIT CAN, and Fanatec bases, ensuring easy integration with various simulation systems. Whether you're a passionate amateur or a professional driver, the CONSPIT H3 adapts to your needs.

Features

2nd-generation hydraulic system with redesigned internal circuit for progressive damping
High-precision hydraulic sensor that picks up the smallest changes in force
Two lever positions: Classic horizontal or Competitive vertical
CNC-machined aluminium alloy body: just 1.04 kg with no compromise on rigidity
Maintenance-free oil reservoir, designed for long-term use
Works with PC over USB, plus CONSPIT CAN and Fanatec wheelbases
Φ6 mm bottom mounting, bolts onto most cockpits

Technical Specs

General
Brand	CONSPIT
Model	H3 Hydraulic
Type	Hydraulic handbrake
Dimensions	218 x 81 x 320 mm
Net weight	1.04 kg
Main material	Aluminium alloy
Mechanics
Technology	2nd-generation hydraulic
Sensor	Hydraulic sensor
Mounting modes	Classic (horizontal) or Competitive (vertical)
Care	Maintenance-free oil reservoir
Mounting
Mounting	From underneath, Φ6 mm
Connectivity & compatibility
Platform	PC
Connection	Direct USB, CONSPIT CAN, Fanatec wheelbases
Cable	USB cable and CAN data cable
Software	Conspit Link 2.0

FAQ

A few questions we're often asked about this product.

Our team of experts is here to answer any question you have.

Why a hydraulic handbrake rather than a position sensor?

Because the hydraulic sensor measures applied pressure rather than lever travel. That lets you meter rear axle lock progressively: enough to place the car on the way into a rally hairpin, or start a drift without snapping straight into it.

Can the H3 be mounted vertically?

Yes, two positions are provided: horizontal in Classic mode or vertical in Competitive mode, depending on your discipline and the space in your rig. It bolts from below with Φ6 mm fixings. The aluminium body measures 218 x 81 x 320 mm at 1.04 kg.

Does the H3 need maintenance?

No, the oil reservoir is maintenance-free, designed for extended use. The second-generation hydraulic system uses a redesigned internal circuit for progressive damping. It connects over direct USB, the CONSPIT CAN bus or a compatible base.
