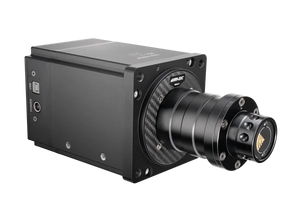

SIMAGIC Simagic Alpha Mini 10 Nm — base direct drive pour simulateur de course

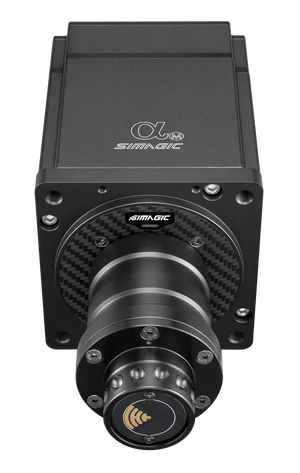

SIMAGIC Simagic Alpha Mini 10 Nm — base direct drive, vue 2
SIMAGIC Simagic Alpha Mini 10 Nm — base direct drive pour simulateur de course
SIMAGIC Simagic Alpha Mini 10 Nm — base direct drive, vue 2
Vendor:SIMAGIC

Direct Drive Wheelbase | Simagic Alpha Mini 10 Nm

Regular price $560.00 CAD Sale price $504.00 CAD
refurbished !

Give it a new life at a truly appealing price with the SIMAGIC Alpha Mini, a compact Direct Drive wheel base offering precise and powerful force feedback for SIMAGIC enthusiasts.

Don't miss the deal

000
00 Days
00
00 Hours
00
00 Mins
00
00 Secs
Out of stock

Pickup currently unavailable at Boutique PassionSim

Available locations

SIMAGIC Simagic Alpha Mini 10 Nm — base direct drive pour simulateur de course

Direct Drive Wheelbase | Simagic Alpha Mini 10 Nm
Free shipping over $200
Support technique 24/7
Established brand
10 Nm
charge
6.35 kg
110 mm
connexion
Quick Release
garantie
Manufacturer Warranty

Features

  • 10 Nm of torque in a compact 259.5 x 110 x 110 mm package
  • Custom 5-pole servo motor developed by SIMAGIC
  • 262,144 ppr encoder for force feedback detailed to the degree
  • 40 kHz refresh rate driven by a 200 MHz processor
  • Sandblasted, anodised CNC aluminium housing: heat dissipation and rigidity
  • SIMAGIC's patented wireless power technology included: fewer cables in the cockpit
  • 4 threaded M6 holes for secure mounting, installation kit and power supply included

Technical Specs

General
Brand SIMAGIC
Model Alpha Mini
Type Direct Drive wheelbase
Dimensions 259.5 x 110 x 110 mm
Net weight 6.35 kg
Materials Aluminium alloy and carbon fibre
Motor & force feedback
Maximum torque 10 Nm
Motor Custom 5-pole servo
Encoder resolution 262.144 ppr
Processor frequency 200 MHz
Refresh rate 40 kHz
3rd filter Included
Mounting
Mounting 4 threaded M6 holes
Bracket Optional
Quick release SIMAGIC quick release optional
In the box
In the box Installation kit, power supply, USB cable
Wireless power Included

Need help choosing your sim racing gear?

Get real advice from our team of enthusiasts.

Contact us
Expert support
Better advice

FAQ

A few questions we're often asked about this product.

Our team of experts is here to answer any question you have.

By price, yes. By electronics, no: a 262,144 point-per-revolution encoder, a 200 MHz processor and a 40 kHz refresh rate, a signal chain worthy of far more expensive bases. Its 10 Nm are plenty to feel grip and weight transfer.

Not much: 259.5 x 110 x 110 mm at 6.35 kg, in a bead-blasted, anodised CNC aluminium housing that sheds heat while staying rigid. It bolts down through four M6 threaded holes, which makes it easy to fit to an existing chassis or a solid stand.

A Simagic patented technology that removes the power cable between base and wheel. Fewer wires in the rotating axis means no twist wear and no intermittent dropouts past a full turn of lock. The third-party filter is included for fine-tuning the force feedback.

Simagic Alpha Mini 10 Nm: performance, precision and compactness

SIMAGIC Simagic Alpha Mini 10 Nm — base direct drive pour simulateur de course

Precise and powerful force feedback

With its custom 5-pole servo motor and 262,144 PPR encoder resolution, the Simagic Alpha Mini delivers detailed and responsive force feedback, with a 40 kHz response rate and 200 MHz CPU frequency.

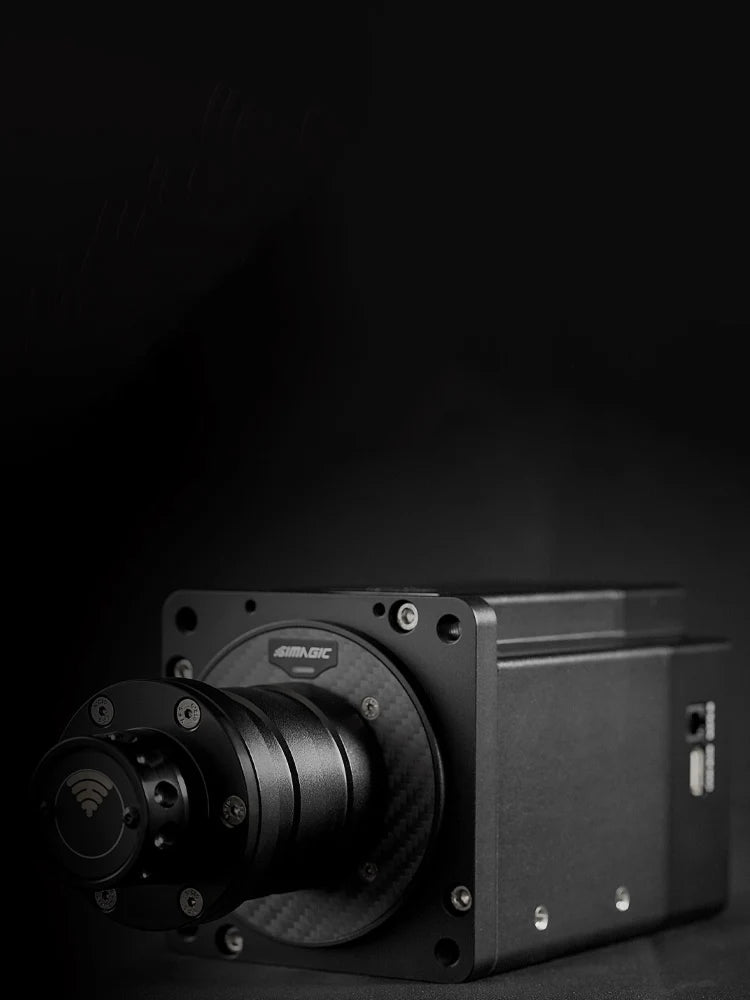

Compact and robust design

Its CNC aluminum housing with sandblasted and anodized finish ensures optimal durability and heat dissipation, while offering a sleek and modern design.

Installation and compatibility

With its dimensions of 259.5 mm x 110 mm x 91.92 mm and a weight of 6.35 kg, the Simagic Alpha Mini fits easily into various cockpits. It is equipped with 4 M6 threaded holes for secure mounting and is compatible with a wide range of Simagic wheels.

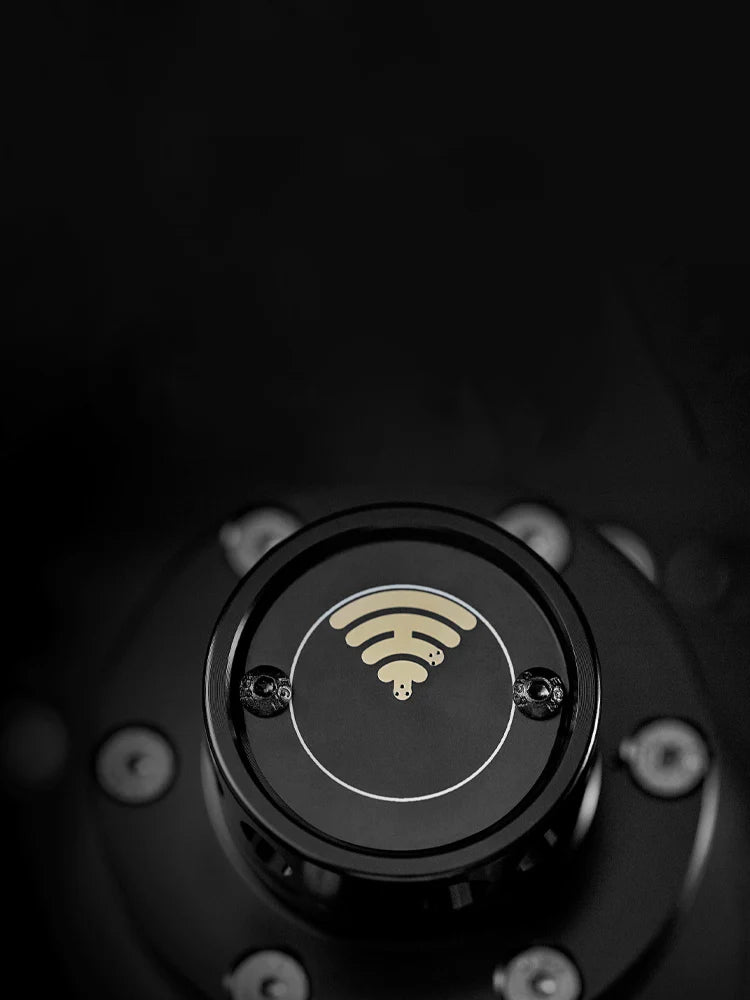

Innovative wireless power supply

Simagic's patented wireless power technology eliminates cable clutter, providing a cleaner installation and increased flexibility.
